Robotic Milling Solutions for Modern Manufacturing

In a robotic milling cell, a six-axis robot positions a milling spindle, the workpiece, or both to trim, route, deburr, or finish a part, and the same cell can tend a CNC mill by loading and unloading it. Robotic milling suits materials such as composites, plastics, foam, wood, aluminum, and selected softer metals, with cutter forces, spindle selection, and fixturing weighed against the finish the part needs. GLOBAL assesses material behavior—vibration, heat, chip evacuation, and tool wear—during process analysis before recommending a cell configuration.

The workpiece has to be held rigidly for milling, so fixturing and workholding are designed to resist cutting forces and keep the part located through the cut. When the cell tends an existing mill instead, parts can be presented in trays, racks, fixtures, or bins depending on geometry, weight, and how consistently they locate. GLOBAL designs presentation and workholding around the part family so position stays repeatable without over-complicating the cell.

GLOBAL selects and supplies the spindle, end-of-arm tooling, and any part-specific fixturing as part of the cell, sized to the material, cutter forces, and reach the process demands. For tending work, the gripper can be mechanical, vacuum, or magnetic, and a dual gripper lets the robot swap a finished part for a raw one in a single visit. Part-in-place and orientation checks confirm the robot holds the right part, correctly located, before the cycle starts.

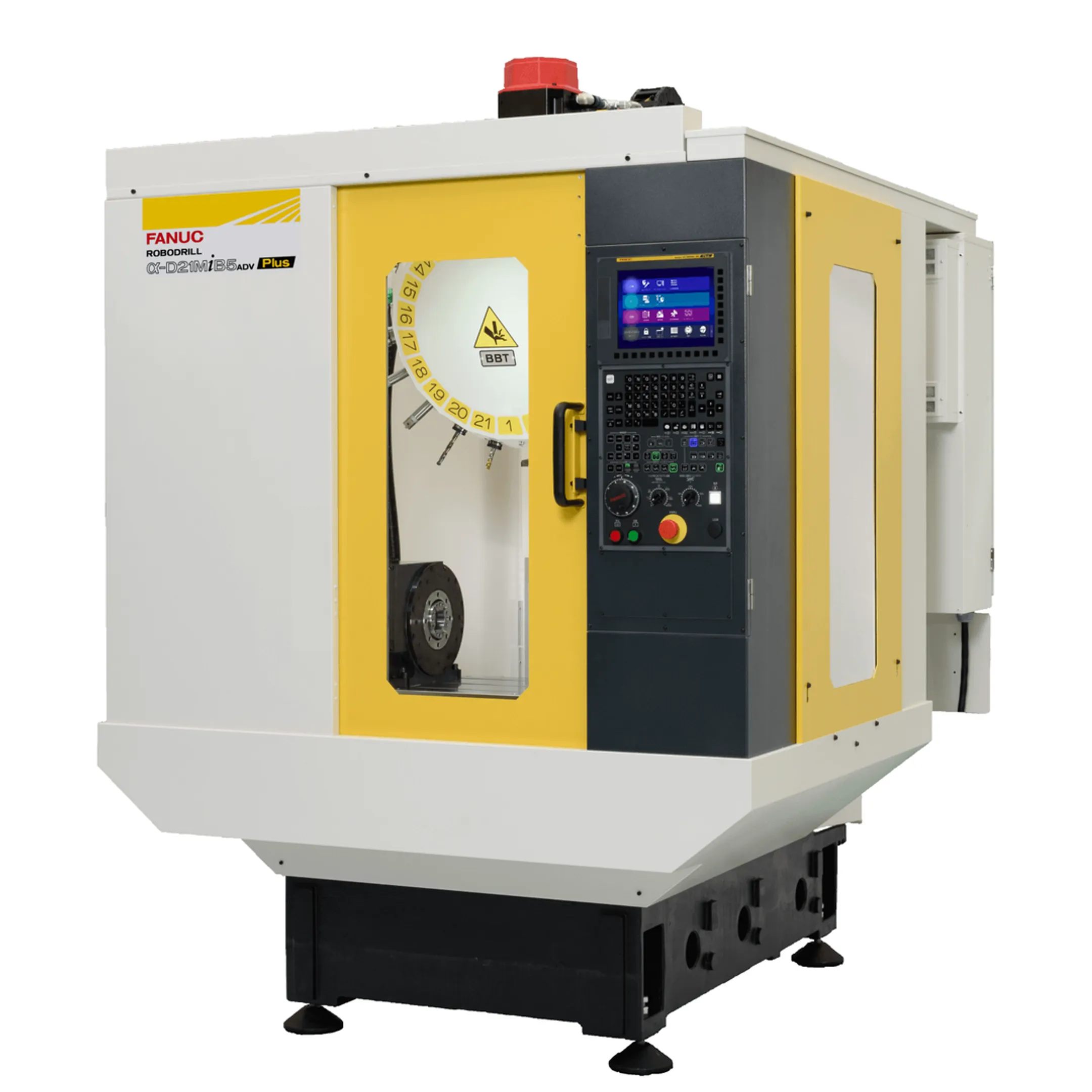

When a robot tends an existing CNC mill, it ties into the machine through an I/O handshake so it knows the cycle is complete, the door is open, and it is clear to load or unload, and the machine will not restart until the robot is clear. This can include automatic door operation, chuck or clamp confirmation, and cycle-start signals exchanged with the machine control. Older machines may need added I/O or an interface upgrade, which GLOBAL confirms from the make, model, and control type.

Robotic milling accuracy depends on the robot, spindle, tooling, material, cutting forces, fixture, calibration, and programmed path, so GLOBAL sets realistic tolerance expectations for each application rather than assuming a robot matches a rigid machine tool. Robots offer reach and flexibility that suit trimming, routing, deburring, and finishing, while the most demanding tolerances are often better held on a machine tool with the robot tending it. A feasibility study and simulation address reach, deflection, collision risk, and repeatability before production launch.

Safeguarding is engineered into the cell, combining fencing, interlocked gates, light curtains, and area scanners so the robot and spindle stop safely when someone enters a protected zone. Where the robot tends a mill, the robot and machine are interlocked so motion is coordinated and neither moves into the other's space unexpectedly. GLOBAL designs guarding to recognized safety standards and reviews the approach with the customer during design.

For a family of parts, the cell can be built for quick changeover with quick-change tooling and selectable programs, and machine vision can locate variable parts and inspect features so the cell adapts without heavy fixturing. Where the process requires, in-process gauging confirms a part before it moves downstream. After commissioning GLOBAL provides training, documentation, and spare-parts guidance, remains available to add parts or extend the cell, and supports unattended running between scheduled maintenance windows.
