Introduction
Walk through most modern plants and you'll see welding cells, palletizers, and machine-tended CNCs running well past a single shift with minimal supervision. Then you hit the finishing department, and suddenly it's people in respirators hand-sanding parts the same way they did 30 years ago.
For manufacturing, process and maintenance engineers at high-volume plants, sanding, grinding, polishing, blasting, and painting remain among the last heavily manual operations. The pressure is piling up fast: a shrinking skilled labor pool, operators exposed to dust and VOCs, and finish quality that shifts with who's holding the tool.
Labor pressure is already acute. US manufacturers may need 3.8 million new workers between 2024 and 2033, with roughly 1.9 million of those roles at risk of going unfilled if current trends continue, according to a 2024 Manufacturing Institute and Deloitte workforce study.
This guide covers what robotic surface finishing systems actually do, the technology making them viable, realistic ROI, and what to evaluate before you invest.
Key Takeaways
- Consistent force and path control deliver production-quality sanding, grinding, polishing, blasting, and painting
- Force sensing, 3D vision, and AI-assisted programming adapt to real part variability—not CAD assumptions alone
- Typical gains include faster cycle times, less rework, and lower consumable waste
- ROI depends on integration planning and engineers who can run and maintain the cell long-term
What Is Robotic Surface Finishing and Why It's Gaining Momentum
Robotic surface finishing uses robotic arms fitted with specialized end-effectors to handle work that once required a skilled operator's hands and judgment. Those tools include sanding heads, grinding wheels, polishing pads, spray guns, and blast nozzles.
Welding and material handling automated decades ago because those tasks tolerate fixed, repeatable paths. Finishing didn't, because it demands real-time judgment: how hard to press, how a surface is actually shaped versus its CAD model, and how to adjust when a tool wears down mid-shift. That's a harder problem, and it's why finishing lagged.
That gap is closing. The global robotic sanding and polishing market was valued at $240.5 million in 2023 and is projected to hit $750 million by 2032, a 13.5% CAGR, according to Allied Market Research's 2024 industry report.

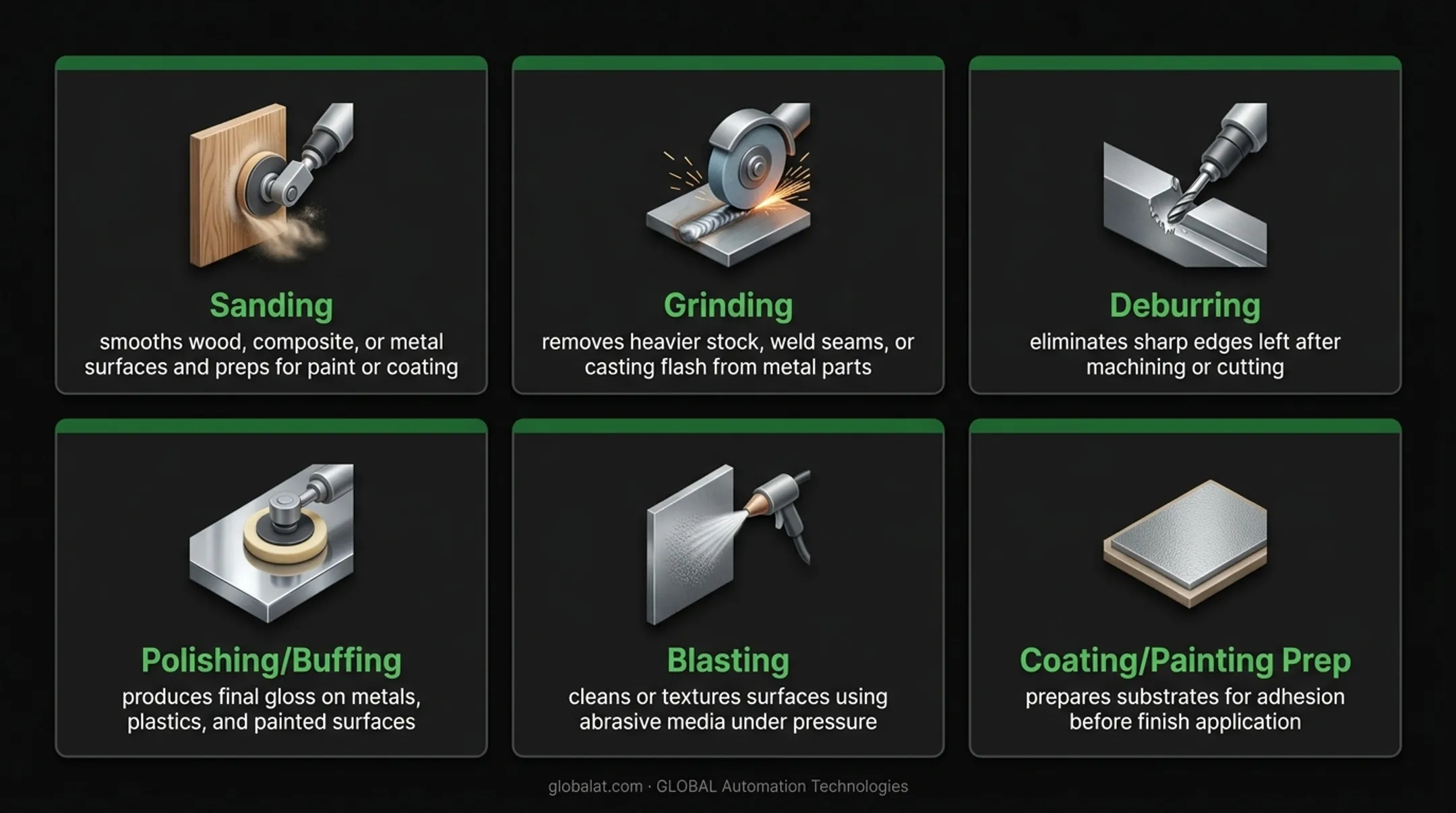

Common Types of Robotic Surface Finishing Processes
- Sanding — smooths wood, composite, or metal surfaces and preps for paint or coating
- Grinding — removes heavier stock, weld seams, or casting flash from metal parts
- Deburring — eliminates sharp edges left after machining or cutting
- Polishing/buffing — produces final gloss on metals, plastics, and painted surfaces
- Blasting — cleans or textures surfaces using abrasive media under pressure
- Coating/painting prep — prepares substrates for adhesion before finish application
The Two Main Types of Surface Finishes
Finishing work falls into two broad categories:
- Mechanical finishes remove material. Sanding, grinding, and polishing fall here, using abrasive contact to shape or smooth a surface.
- Coating finishes add material. Painting, plating, and thermal spray build up a distinct layer on top of the substrate.
Robots handle both, but the tooling and control strategy differ. Mechanical work relies on pressure and contact control; coating work relies on repeatable spray pattern, flow rate, and film build held within specification cycle after cycle.
Industries Where Robotic Finishing Is Being Adopted Fastest
Robotic finishing fits repeatable, high-volume production such as truck cabs and frames, agricultural and construction equipment, appliances, and electrical enclosures; one-off collision repair or refinishing work is not what these systems are built for. Automotive represents nearly three-fifths of the 2023 robotic sanding and polishing market. Adoption is also building in:
- Heavy equipment — large structural and cast component finishing
- Specialty vehicles — consistent, repeatable finishes at lower volumes
- Aerospace — turbine blade finishing and composite panel work
- EV production — body finishing and paint lines
The Technology Stack Behind Adaptive Robotic Finishing Systems
Traditional industrial robots follow a fixed, pre-programmed path. That works fine for spot welding a bracket that's identical every time.
It fails the moment a casting arrives slightly warped or a weld bead sits a millimeter off the CAD model. Finishing parts are almost never perfectly identical.
Force and Torque Control
Force/torque sensors let the tool adjust pressure in real time instead of blindly following a set path. As a tool wears down or material density shifts, the robot compensates automatically. That keeps finish quality consistent from the first part of a shift to the last.
3D Vision and Adaptive Sensing
3D vision systems scan actual part geometry rather than trusting the CAD file. Real parts have tolerances, warping, and casting variation that a model doesn't capture. Vision-guided systems catch defects before a part moves downstream, so scrap gets cut before it reaches later stations.
AI-Assisted Simulation: Cutting Programming Time
Programming used to mean building a path, testing it on the floor, finding problems, and repeating. AI-assisted simulation and offline programming let engineers model, test, and optimize programs before any code runs on physical equipment.
GLOBAL Automation Technologies, which holds Level 5 status in FANUC’s Authorized System Integrator program, applies this approach on its robotic painting and coating projects, running pre-deployment optimization so startup surprises get caught in simulation instead of on the production floor.
Precision Beyond Sanding: Painting and Dispensing
These same principles extend past abrasive work into coating and dispensing. A well-integrated painting system holds film build within specification shift after shift, following the same programmed path every cycle so coverage no longer varies with operator technique or fatigue.
Results on the floor:
- Less overspray and lower material waste per part
- Finish quality that matches from part one to part ten thousand
- Operators kept out of hazardous spray environments
Benefits and ROI Manufacturers Can Expect
Throughput and Quality

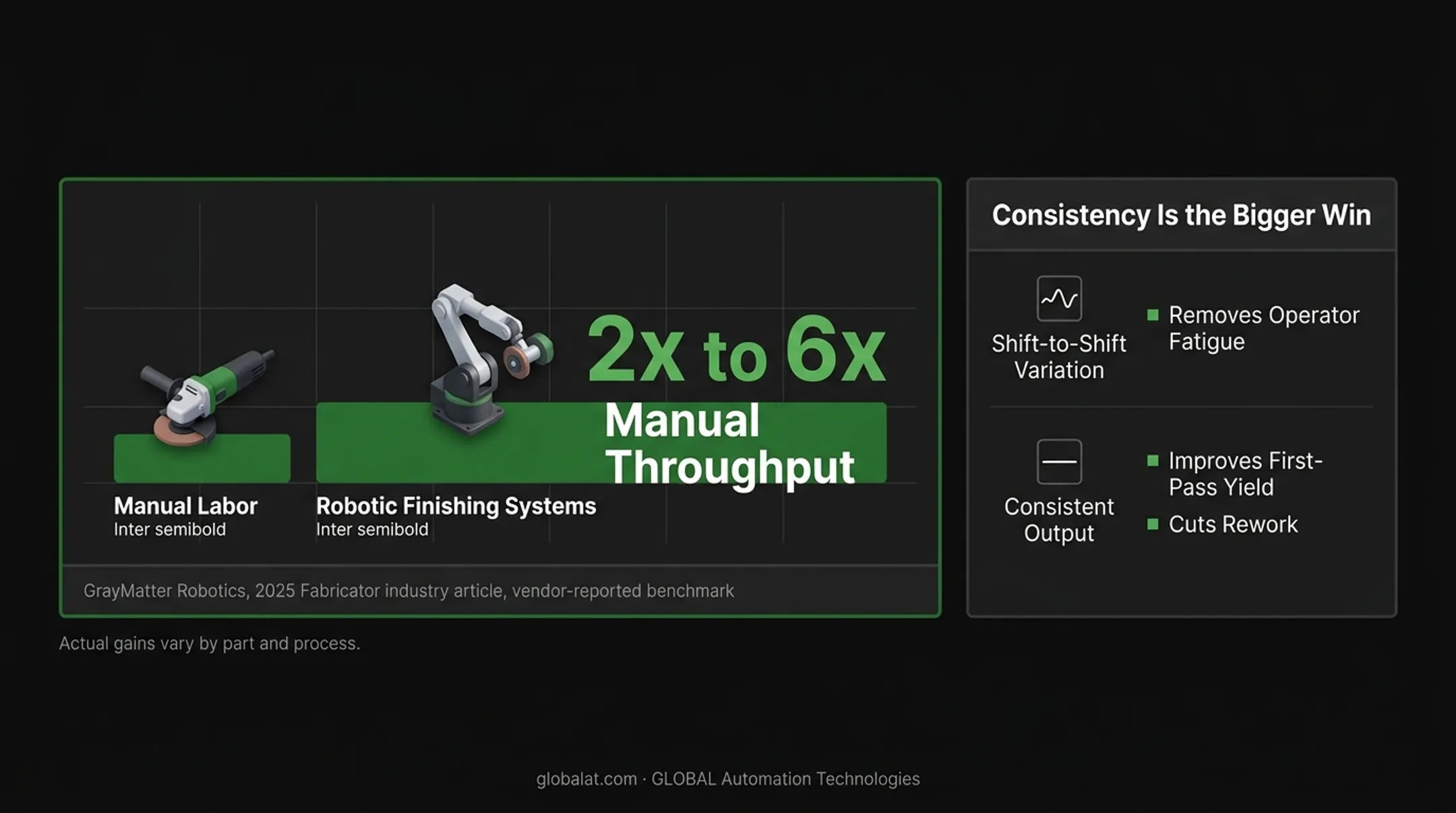

Robotic finishing systems typically outproduce manual labor by a wide margin. GrayMatter Robotics reports 2x to 6x manual throughput on grinding and surface-finishing applications, a vendor-reported benchmark from a 2025 Fabricator industry article.
Actual gains vary by part and process.
Beyond speed, consistency is the bigger win. Removing operator fatigue and shift-to-shift variation directly improves first-pass yield and cuts rework.
Safety and Material Savings
Manual sanding, grinding, and spray finishing expose workers to dust, isocyanates, VOCs, and repetitive strain injuries. Pulling operators out of that exposure zone is one of the clearest benefits of automating this work.
Consistent pressure and spray control also reduce waste:
- Less abrasive consumed per part through even pressure application
- Reduced overspray and paint waste from repeatable spray patterns
- Lower rework-driven consumable use overall
Realistic Payback Timelines
Payback periods vary by process and volume. Machine tending cells, for example, typically pay for themselves in 12 to 18 months once labor and output gains are factored in.
Finishing cells follow similar logic. The exact timeline depends on your part mix, current scrap rate, and labor costs.
Integration and Deployment Considerations for Existing Production Lines
Before committing to a finishing cell, work through these practical questions:
- Floor space and utilities: Clearance for the robot's full work envelope, plus electrical and pneumatic capacity for hazardous-rated spray or blast equipment
- Platform compatibility: Confirm the cell integrates with your existing robot platform (FANUC is most common in high-precision and hazardous environments) instead of a mixed-vendor setup
- Volume and changeover: High-mix, low-volume work needs faster reprogramming; high-volume single-part lines can prioritize cycle speed
Most transitions don't happen overnight. Manufacturers typically run automated and manual processes in parallel during validation, comparing output before committing to full cutover. That parallel period catches problems early and keeps production moving if something needs adjustment.
For regulated industries like automotive and aerospace, factor in traceability requirements upfront. Documentation of process parameters, film-build data, and test results isn't optional in these sectors. Build that requirement into your evaluation criteria before you select a system.
Why the Right Automation Partner Matters as Much as the Technology
Buying the robot is the easy part. Programming it correctly, validating the process, and keeping it running when something drifts—that's where many automation projects stall. Manufacturers often have the hardware but not the engineering bandwidth to run it well.
This is the gap GLOBAL Automation Technologies was built to close. GLOBAL brings together turnkey automation solutions and engineering services. FANUC's paint systems group contracts GLOBAL for programming, process development, installation, and line service on its paint and dispense installations.
GLOBAL's turnkey scope covers the full project lifecycle:
- Layout and cell design matched to your finishing process
- Build, robot programming, and controls integration
- Process validation and on-site installation
- Commissioning, operator training, and ongoing support
That full-lifecycle approach prevents a common failure mode: a system that's technically installed but poorly validated, then underperforms for months before anyone notices.
GLOBAL brings a proven global base of robotic deployments, primarily on FANUC platforms built for hazardous and high-precision environments. That experience maps directly to finishing and coating work, where process drift and weak validation are frequent causes of scrap and rework.
Frequently Asked Questions
What does "surface finishing" mean?
Surface finishing refers to any process applied to a part's exterior—sanding, polishing, grinding, blasting, or coating—to achieve a desired appearance, texture, or protective quality. It's typically the last step before a part ships or moves to final assembly.
What are the two main types of surface finishes?
Mechanical finishes remove material through sanding, grinding, or polishing. Coating finishes add material through painting, plating, or similar deposition processes. Robots handle mechanical work with pressure-controlled tooling and coating work with spray or applicator control.
What is the difference between robotic sanding and robotic polishing?
Sanding removes material to smooth or shape a surface, usually as a mid-process step. Polishing is a final-stage finishing process that produces gloss or shine using finer abrasives or buffing pads rather than heavy stock removal.
How much does a robotic surface finishing system cost?
Cost depends on the robot platform, tooling, and integration complexity. Many manufacturers recoup the investment within 12 to 18 months through combined labor, rework, and consumable savings.
Which industries benefit most from robotic surface finishing?
Automotive leads adoption by volume and quality standards, followed by aerospace, heavy equipment, and specialty vehicle manufacturing. These sectors share high part volumes or strict finish requirements where automation delivers repeatable consistency part after part.
How long does it take to implement a robotic finishing cell?
Timelines run from a few weeks to several months depending on part complexity and cell scope. Most manufacturers run automated and manual processes in parallel for validation before committing to a full production cutover.
