TCP is the invisible setting behind every robotic motion, and when it's wrong, straight-line moves can mask the problem while rotations and complex paths expose it immediately. This guide covers what TCP actually is, how calibration works, the mistakes that cause silent drift, and how to keep accuracy intact over time.
This matters most for automotive, heavy industry, and high-mix production cells, where frequent tool changes make TCP drift a constant risk rather than a one-time setup task.
Key Takeaways
- TCP is the tool's control reference point, not the robot flange, and it drives every motion calculation
- Calibration accuracy directly affects weld quality, assembly precision, and collision risk
- Wear, collisions, and thermal cycling shift TCP over time, so recalibrate on a schedule—not by guesswork
- Choose the method to match the job: manual three-point touch-off through automated laser and vision systems
What Is a Tool Center Point (TCP) in Robotics?
A Tool Center Point (TCP) is the specific point on a robot's tool—such as a weld tip, gripper center, or dispensing nozzle—that the controller uses as its reference for all motion. According to ISO 8373:2021, it's formally defined as a point selected for a given application relative to the robot's mechanical-interface coordinate system.

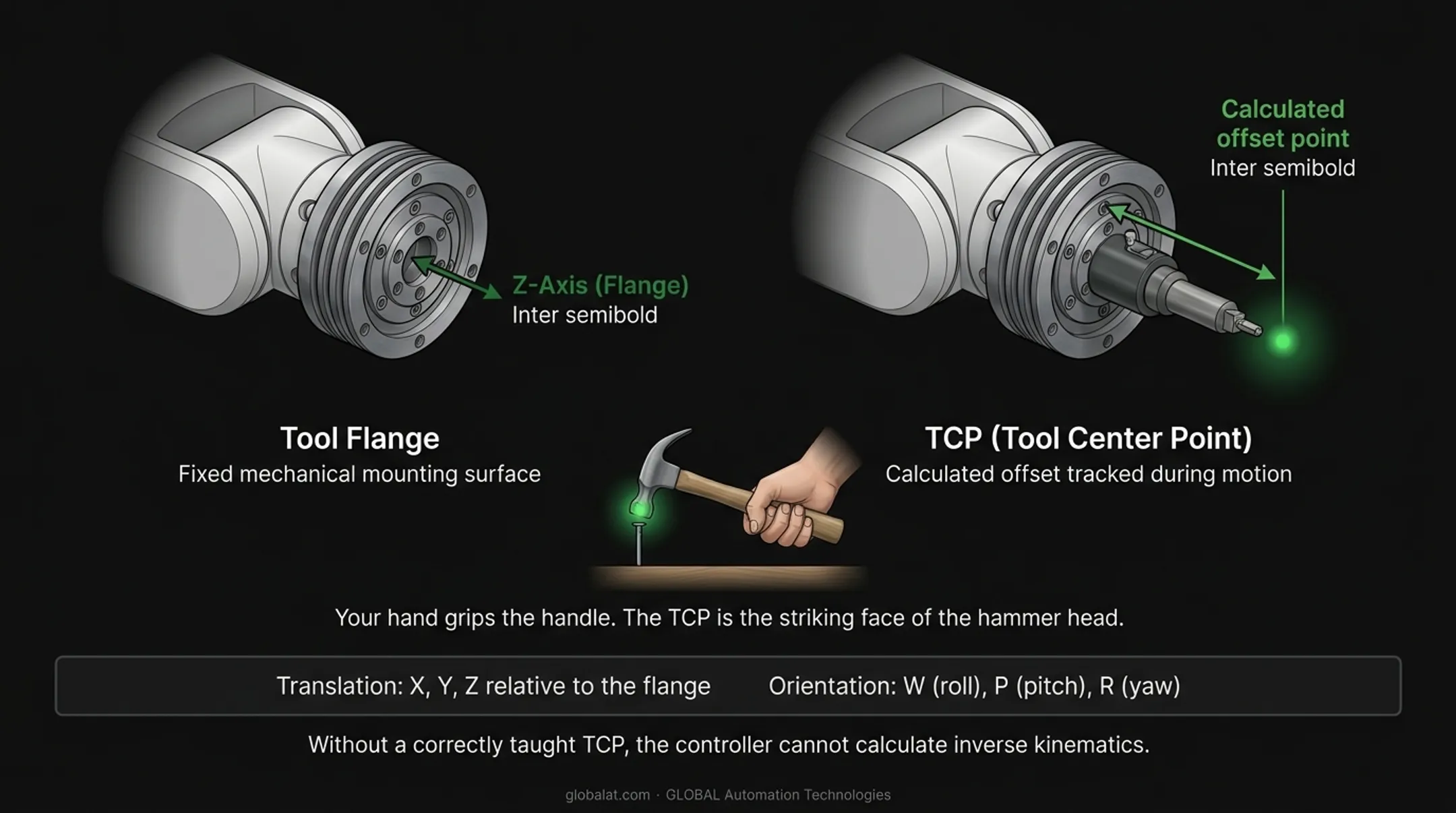

TCP vs. the Tool Flange
The flange is the physical mounting surface where the tool attaches to the robot's wrist. It's fixed and mechanical. TCP is a calculated offset from that flange, expressed as a position and orientation the controller tracks during motion.
Think of it like swinging a hammer. Your hand grips the handle, but the point that actually matters is where the hammer head strikes the nail. The robot's flange is your hand; the TCP is the striking face of the hammer head.
Mathematically, TCP combines:
- Translation: X, Y, Z coordinates relative to the flange
- Orientation: Rotational offset, expressed by FANUC as W (roll), P (pitch), and R (yaw)
Without a correctly taught TCP, the controller has no accurate way to calculate inverse kinematics. It can't determine which joint angles will place the tool tip exactly where the program intends.
Why TCP Calibration Matters for Manufacturing Accuracy

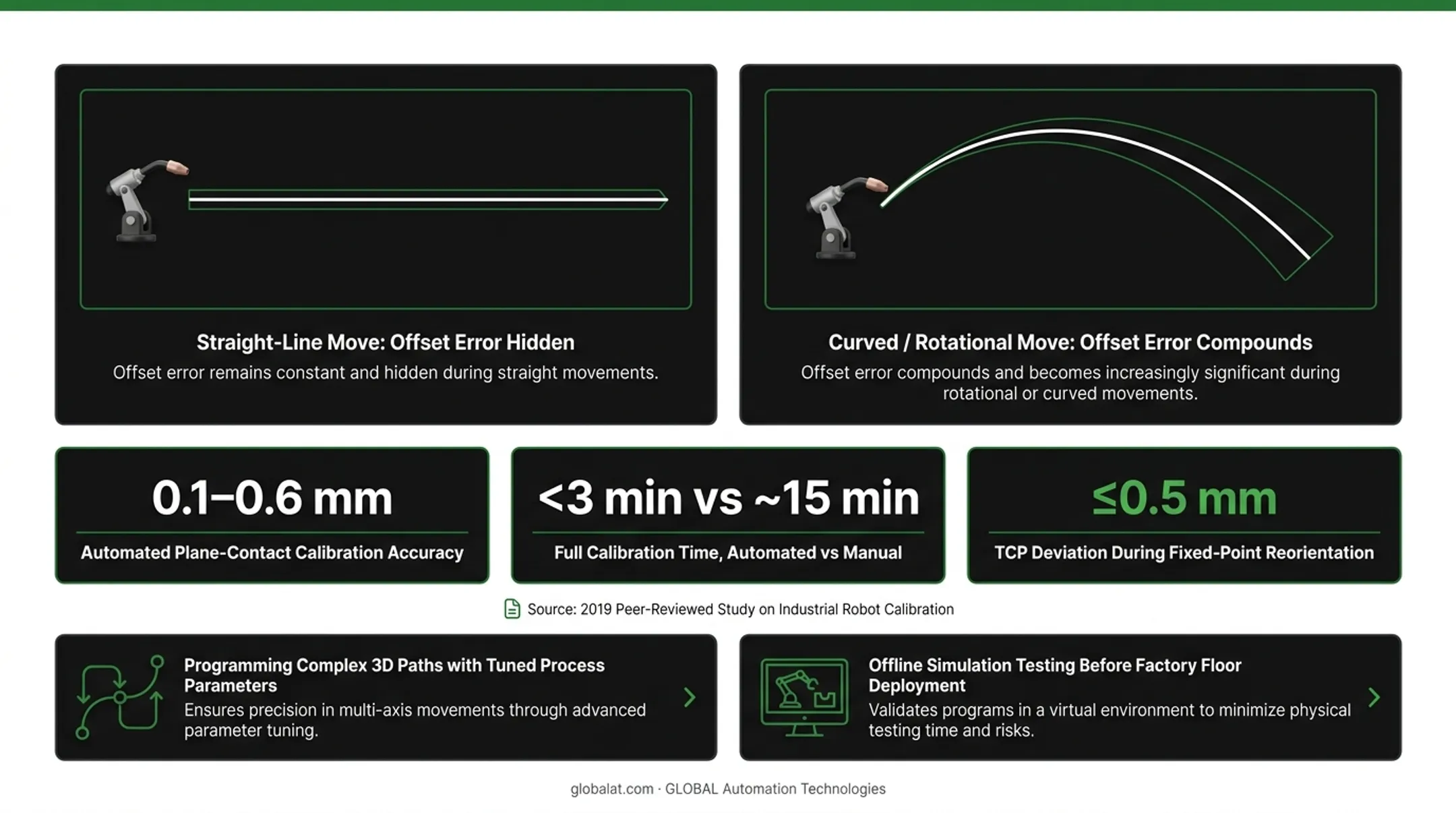

A poorly calibrated TCP creates a deceptive problem: straight-line moves often look fine, because a fixed offset error just shifts the whole line slightly. Curved paths and rotational moves fail dramatically, because the offset error compounds every time the tool changes orientation.
That's why a weld looks perfect on a straight seam and then wanders on a curve.
A 2019 peer-reviewed study on industrial robot calibration put hard numbers on that gap:
- Automated plane-contact calibration reached 0.1–0.6 mm accuracy
- Full calibration finished in under 3 minutes, versus about 15 minutes manually
- TCP deviation during fixed-point reorientation stayed at or below 0.5 mm
TCP accuracy also touches safety. A well-defined TCP reduces unexpected tool paths in shared workspaces. It is still a geometric and process-control measure—not a substitute for safety-rated systems like position and speed monitoring.
At GLOBAL Automation Technologies, TCP setup and validation are built into every robotic system deployment. Teams catch positional issues before ramp-up by:
- Programming complex 3D paths with process parameters (flow rate, speed) tuned together
- Testing programs in offline simulation before they reach the factory floor
Understanding Robot Coordinate Systems and Where TCP Fits
TCP doesn't exist in isolation. Robots juggle multiple coordinate frames simultaneously, and understanding how they interact clarifies why TCP behaves the way it does.
The Five FANUC Coordinate Systems
| Frame | Function |
|---|---|
| Joint | Jogs individual robot axes, separately or together |
| World | Cartesian frame fixed to the robot base; used for paths and safety zones |
| User | Aligns X/Y/Z around a translated or rotated fixture or workpiece |
| Tool | Attached to the end-of-arm tool; motion programmed relative to the tip |
| Jog/JGFRM | Temporary frame for manual movement during commissioning or troubleshooting |
The TCP frame's origin sits at the tool tip and travels with the robot. The World frame stays fixed to the base no matter what the arm does.
When you program in Tool frame, paths are calculated relative to that moving tip. Points taught under an active User frame are stored relative to the User origin—not the robot base—so an accurate TCP keeps those paths correct when the tool or fixture changes.
How the PLC Fits In
A Programmable Logic Controller doesn't calibrate TCP, but it does coordinate the operations that depend on it. FANUC's PLC Motion Interface lets a PLC command linear, joint, and circular moves in the active coordinate frame. The same cyclic I/O handshake manages conveyors, sensors, and tool-change signals that depend on a valid TCP.
Safety stays on a separate channel from that process traffic. FANUC's R-30iB Plus controllers support safety-rated communication such as EtherNet/IP CIP Safety (Category 4, PL e, SIL 3). Standard process I/O and safety-rated I/O are not interchangeable—treating ordinary messaging as a safety interlock is a design mistake.
How to Calibrate a Robot's TCP: Step-by-Step
The Manual Point Method

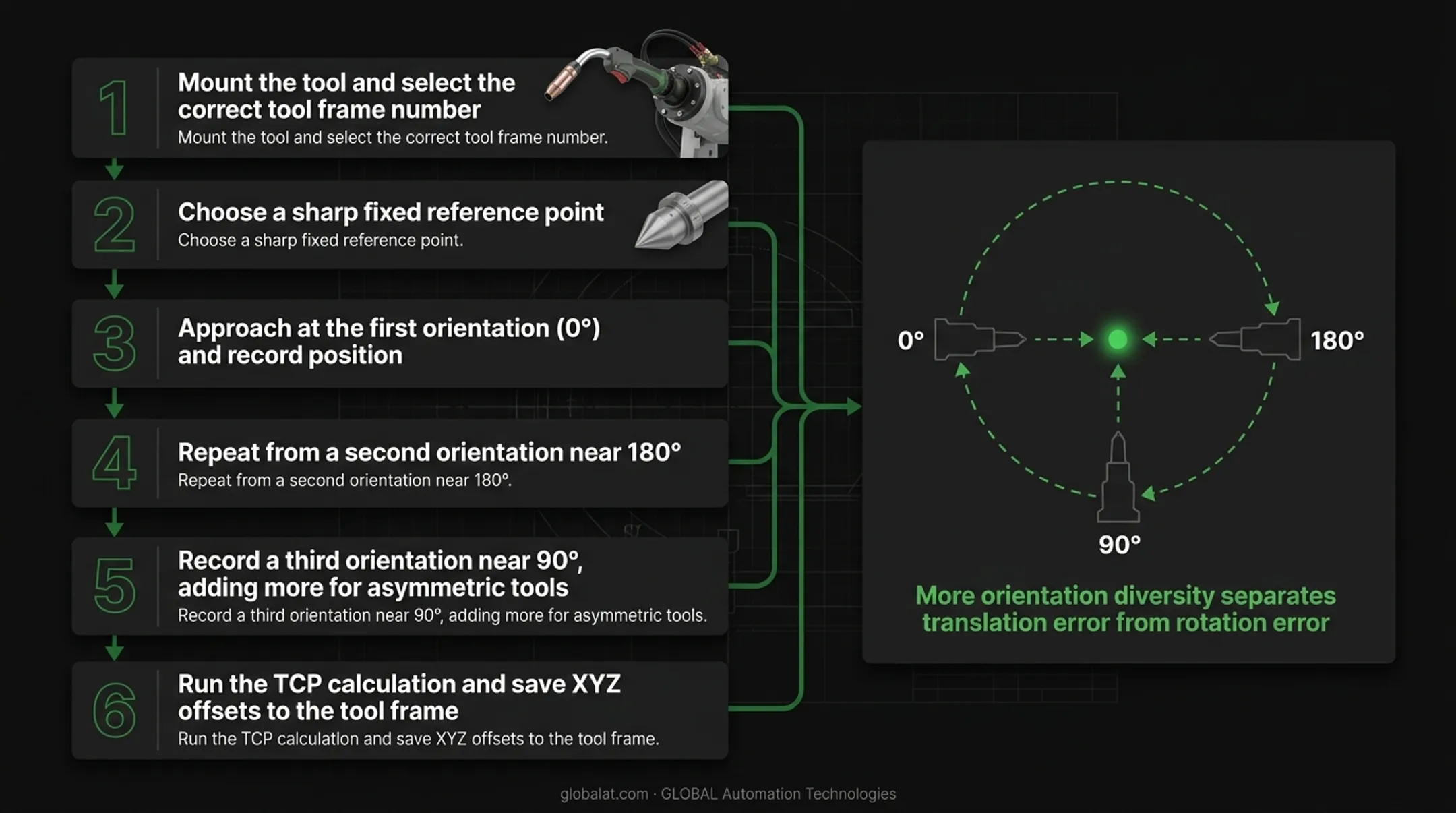

FANUC's standard manual approach uses a three-point method. You touch a fixed reference point from three distinct tool orientations so the controller can solve for the tool tip offset.
Typical sequence:
- Mount the tool and select the correct tool frame number on the teach pendant.
- Choose a sharp fixed reference (pointer, fixture tip, or scribed mark) that will not move during teaching.
- Approach the point in the first orientation (for example, 0°) and record the position with the tool tip touching the reference.
- Repeat from a second orientation near 180°, touching the same physical point as precisely as possible.
- Record a third orientation near 90° (add a fourth or fifth pose for asymmetric or off-center tools).
- Run the controller’s TCP calculation and save the resulting XYZ (and, if used, orientation) offsets to the tool frame.
More orientation diversity helps the controller separate translation error from rotation error, which matters most on bent torches, angled spindles, and other off-center tooling.
Automated Calibration Options
Automated systems remove much of the operator variability from the process:
- Plane-contact systems: Touch a known plane at multiple poses; the controller solves the offset from contact differences—no external metrology lab required
- Laser-based systems: Light barriers detect the tool breaking each beam; dual-laser setups can reach about 0.01 mm reproducibility
- Camera or vision systems: Non-contact measurement that can speed teaching; cost and integration effort vary by cell design
Manual vs. Automated: Quick Comparison
| Factor | Manual (3-point) | Automated (laser/vision) |
|---|---|---|
| Time required | ~15 minutes | Under 3 minutes |
| Accuracy | Operator-dependent (often ~0.5–1+ mm) | About 0.1–0.6 mm typical |
| Equipment | Fixed reference point only | Laser units, cameras, or contact fixtures |
| Best for | Low tool-change frequency | High-mix cells, frequent tool changes |
Verifying the Calibration
After you save the new tool frame, jog the TCP back to the reference point through several orientations. The tip should stay planted on the same spot; if it walks off the point, reject the result and recalibrate before production.
Recalibrate whenever:
- A tool is changed, replaced, or repaired
- A collision or impact occurs
- A scheduled maintenance interval arrives
Common TCP Calibration Mistakes and How to Avoid Them
Small errors during calibration compound into big problems downstream. These mistakes show up constantly on plant floors—and each has a straightforward fix:
- Loose tool mounting creates inconsistent positions that are hard to diagnose. Torque fasteners to spec and recheck after the first production cycle.
- Too few points or a narrow angle spread fails on asymmetric tools. Spread orientations widely across the workspace instead.
- Thermal cycling and tool wear cause silent drift programs won't flag until quality drops. Recalibrate on a set schedule and after any impact or tooling change.
- Manual contact teaching carries inherent uncertainty. Treat it as an approximation and cross-check critical TCPs with a second reference when tolerances are tight.
Build a Verification Habit

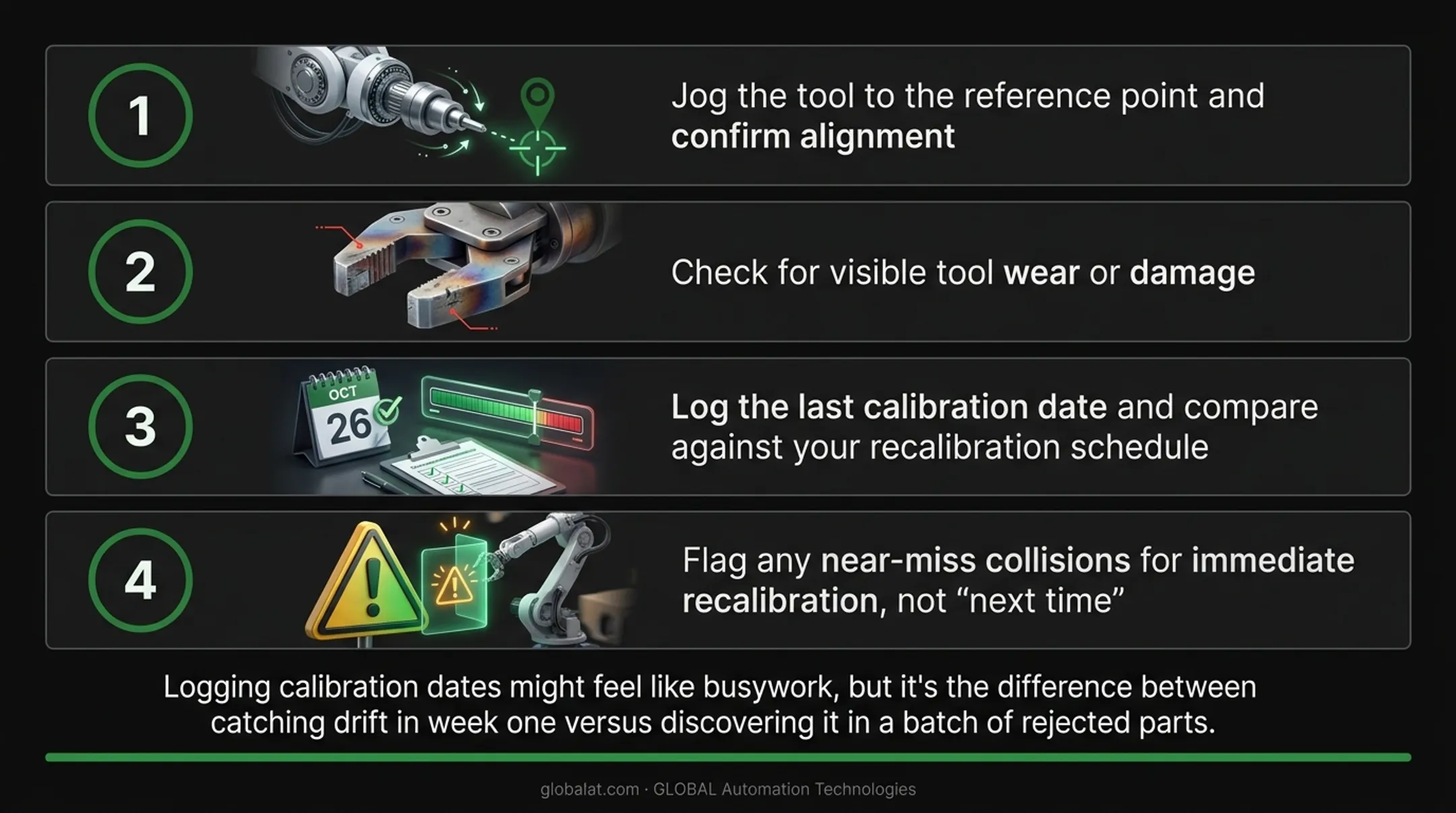

A simple pre-shift checklist catches drift before it reaches production:
- Jog the tool to the reference point and confirm alignment
- Check for visible tool wear or damage
- Log the last calibration date and compare against your recalibration schedule
- Flag any near-miss collisions for immediate recalibration, not "next time"
Logging calibration dates might feel like busywork, but it's the difference between catching drift in week one versus discovering it in a batch of rejected parts.
When to Bring in a Professional Automation Partner
Some environments make in-house TCP management manageable. Others make it a full-time liability. High-mix cells, tight-tolerance assembly work, and frequent tool changes push most manufacturers toward automated calibration systems and expert setup.
Signs it's time to bring in outside expertise:
- Multiple tool changeovers per shift
- Tolerance requirements tighter than what manual methods reliably deliver
- Recurring, unexplained quality issues on curved or rotational paths
- No dedicated engineering resource to own calibration long-term
When those conditions show up on your floor, a partner that owns both system setup and ongoing engineering support usually closes the gap faster than building the capability in-house.
GLOBAL Automation Technologies integrates AI-assisted simulation into robot deployments, modeling and testing programs before code reaches the plant floor. That approach has cut robot programming time from weeks to days on past projects—critical when TCP setup and path validation must finish before a line ramps up.
As a Level 5 FANUC Authorized System Integrator, GLOBAL delivers complete FANUC robotic systems from concept through commissioning and ongoing support.
Because GLOBAL runs systems integration and technical staffing under one roof, manufacturers get more than a calibrated cell at handoff. They get access to the controls engineers and robot programmers who keep it accurate long after startup.
Frequently Asked Questions
What does TCP (Tool Center Point) stand for in robotics?
TCP stands for Tool Center Point, the specific point on a robot's tool that the controller uses as its reference for motion. It's what actually moves through space, not the flange or wrist.
What are the five coordinate systems in FANUC robots?
Joint, World, User, Tool, and Jog (JGFRM). Each defines motion or jogging relative to a different reference, from individual axes to the robot base to the tool tip itself.
What does PLC (Programmable Logic Controller) mean in robotics?
A PLC coordinates automation logic like motion commands, I/O signals, and peripheral equipment alongside the robot controller. Safety-critical functions run on a separate, certified communication channel.
How often should a robot's TCP be recalibrated?
There's no universal interval. Recalibrate after any new, changed, or damaged tool, and consider checks at shift start or after maintenance for high-precision applications.
What happens if a robot's TCP is calibrated incorrectly?
Misaligned welds, failed assembly fits, and increased collision risk are the most common outcomes. Curved and rotational paths typically reveal the problem before straight-line moves do.
Can TCP calibration be automated?
Yes. Laser-based and vision-based systems calculate TCP with less operator dependence than manual methods, often in a fraction of the time and with tighter reproducibility.
