Industrial asking rent hit $10.13 per square foot in Q4 2024, up 4.5% year-over-year, according to a Cushman & Wakefield industrial market report. Every square foot recovered by going vertical has real dollar value attached to it.
This article breaks down the main types of vertical conveyors, where each one fits, and how to pick the right one for your facility.
TL;DR
- Vertical conveyors move goods between floors, saving floor space and cutting forklift traffic
- Five main types: VRCs, spirals, paternosters, bucket elevators, and vertical screw conveyors
- Choose by load type, throughput, footprint, and safety requirements
- Each system has a distinct drive mechanism and use case; none are interchangeable
- GLOBAL Automation Technologies integrates conveyor systems into broader robotic material handling lines
What Is a Vertical Conveyor System?
A vertical conveyor moves materials, not people, between elevations inside a facility. Think pallets, totes, boxes, or bulk solids — not passengers.
These systems are usually embedded into a larger material handling line rather than sold as standalone equipment. That's a key distinction from elevators or lifts, which carry riders and answer to a completely different set of rules.
Vertical conveyors fall under ASME B20.1, the safety standard governing conveyors and related equipment. Passenger elevators are covered under ASME A17.1, and that code explicitly excludes B20-class conveyors. The MHI application guideline for vertical reciprocating conveyors (VRCs) states plainly: "No person shall ride on a VRC."
That regulatory boundary matters. It affects permitting, inspection requirements, and how you specify guarding and interlocks during design.
Why Vertical Conveyors Matter in Modern Manufacturing and Warehousing
Long horizontal conveyor runs eat floor space that could otherwise hold racking, production cells, or staging areas. Vertical conveyors solve this by moving product flow up, not sideways.
Skipping vertical conveying has real costs:
- Forklift congestion at busy transfer points between levels
- Manual lifting injuries from staff moving totes or boxes by hand
- Slower throughput compared to automated vertical transfer
- Forklift fatalities linked to 84 U.S. work-related deaths in 2024, per National Safety Council data
One documented example: a distribution facility with a nearly 14-foot mezzanine found forklift replenishment "precarious" until a vertical reciprocating conveyor replaced that move entirely.
As plants add robotics and AGVs to the floor, vertical conveyors link production zones into one continuous flow. GLOBAL Automation Technologies, a Level 5 FANUC Authorized System Integrator, regularly integrates FANUC robots with conveyor systems for synchronized part transfer. That work covers speed matching, trigger signals, and flow-rate coordination so robotic cells and conveying equipment operate as a single system.
Types of Vertical Conveyor Systems
Vertical conveyors aren't one-size-fits-all. The right choice depends on load type, required speed, direction of flow, and available space.
Vertical Reciprocating Conveyors (VRCs)

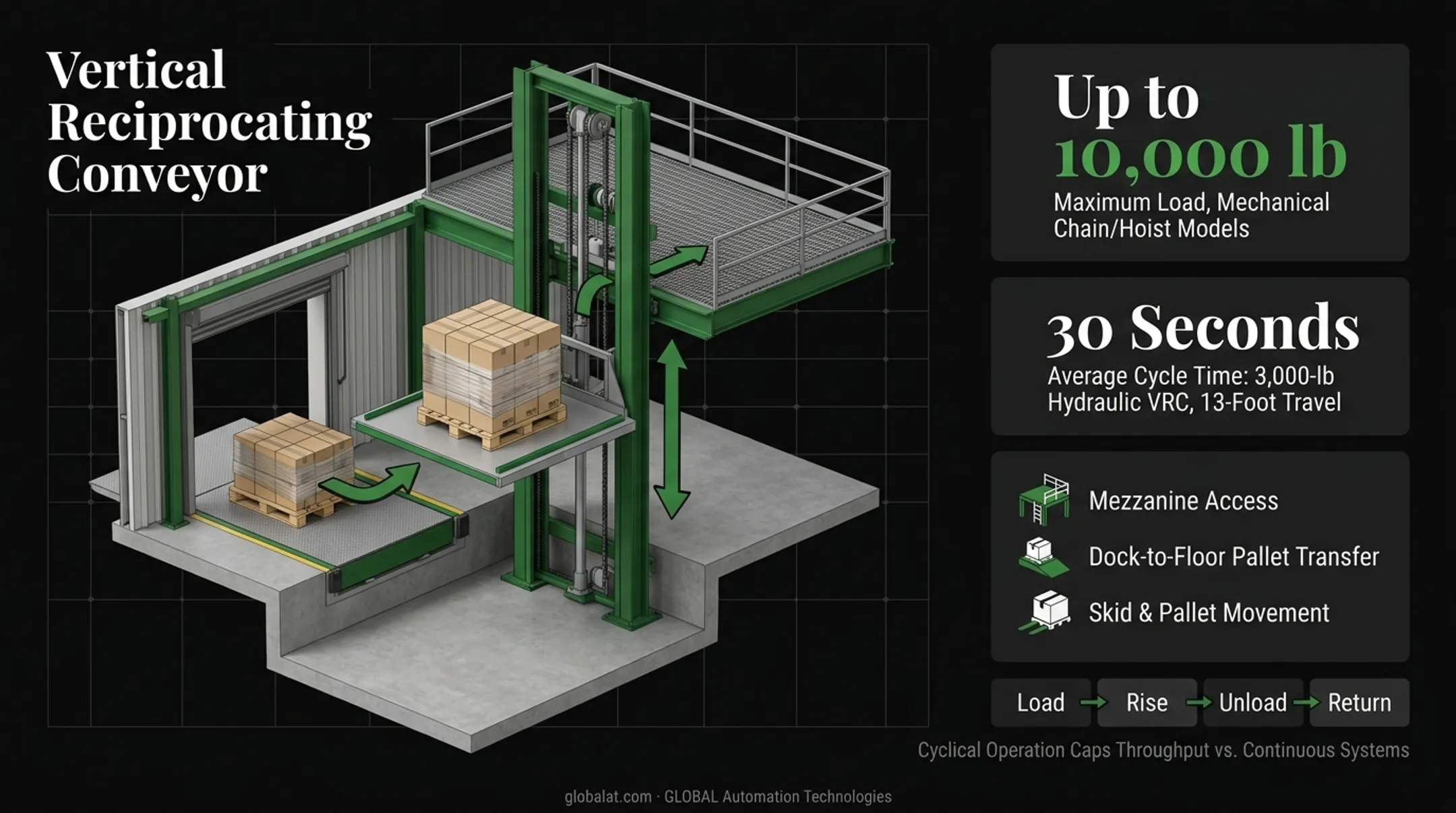

A VRC uses a platform, powered by a hydraulic or mechanical (chain/hoist) drive, to move a single carrier straight up or down between levels. The platform loads at one level, travels vertically, and unloads at another.
Unlike continuous-loop or spiral designs, a VRC operates on a single reciprocating platform. It's a start-stop cycle, not constant motion.
Best suited for:
- Mezzanine access
- Dock-to-floor pallet transfer
- Skid and pallet movement in warehouses and plants
Strengths:
- High load capacity: some mechanical models handle up to 10,000 lb
- Compact footprint relative to a freight elevator
- Safer alternative to forklift ramps or lifts
Limitation: Cyclical operation caps throughput compared to continuous systems. A pharmaceutical distributor using a hydraulic VRC with 3,000-lb capacity and 13-foot travel averaged about 30 seconds per trip. That pace works for periodic pallet moves, but not constant high-frequency flow.
Continuous (Paternoster) Vertical Conveyors

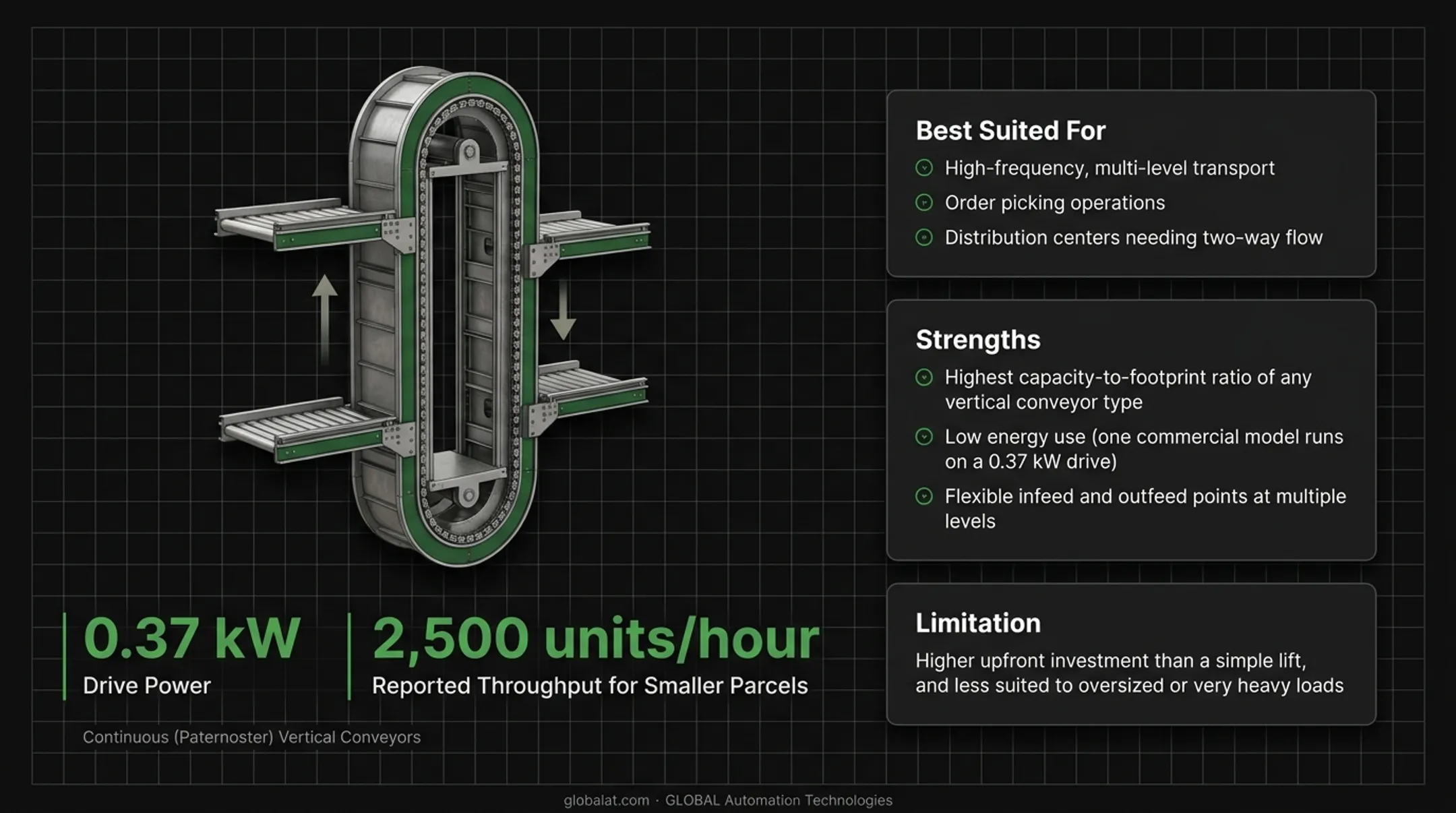

Paternoster conveyors run multiple carriers in a continuous loop, each carrier staying horizontal throughout the cycle. This allows simultaneous up and down movement across several products at once.
That's the core difference from a VRC: multiple carriers moving continuously versus one platform cycling on and off.
Best suited for:
- High-frequency, multi-level transport
- Order picking operations
- Distribution centers needing two-way flow
Strengths:
- Highest capacity-to-footprint ratio of any vertical conveyor type
- Low energy use (one commercial model runs on a 0.37 kW drive)
- Flexible infeed and outfeed points at multiple levels
Limitation: Higher upfront investment than a simple lift, and less suited to oversized or very heavy loads. A logistics case study using continuous carriers for boxes and containers reported throughput up to 2,500 units per hour for smaller parcels.
Spiral Vertical Conveyors

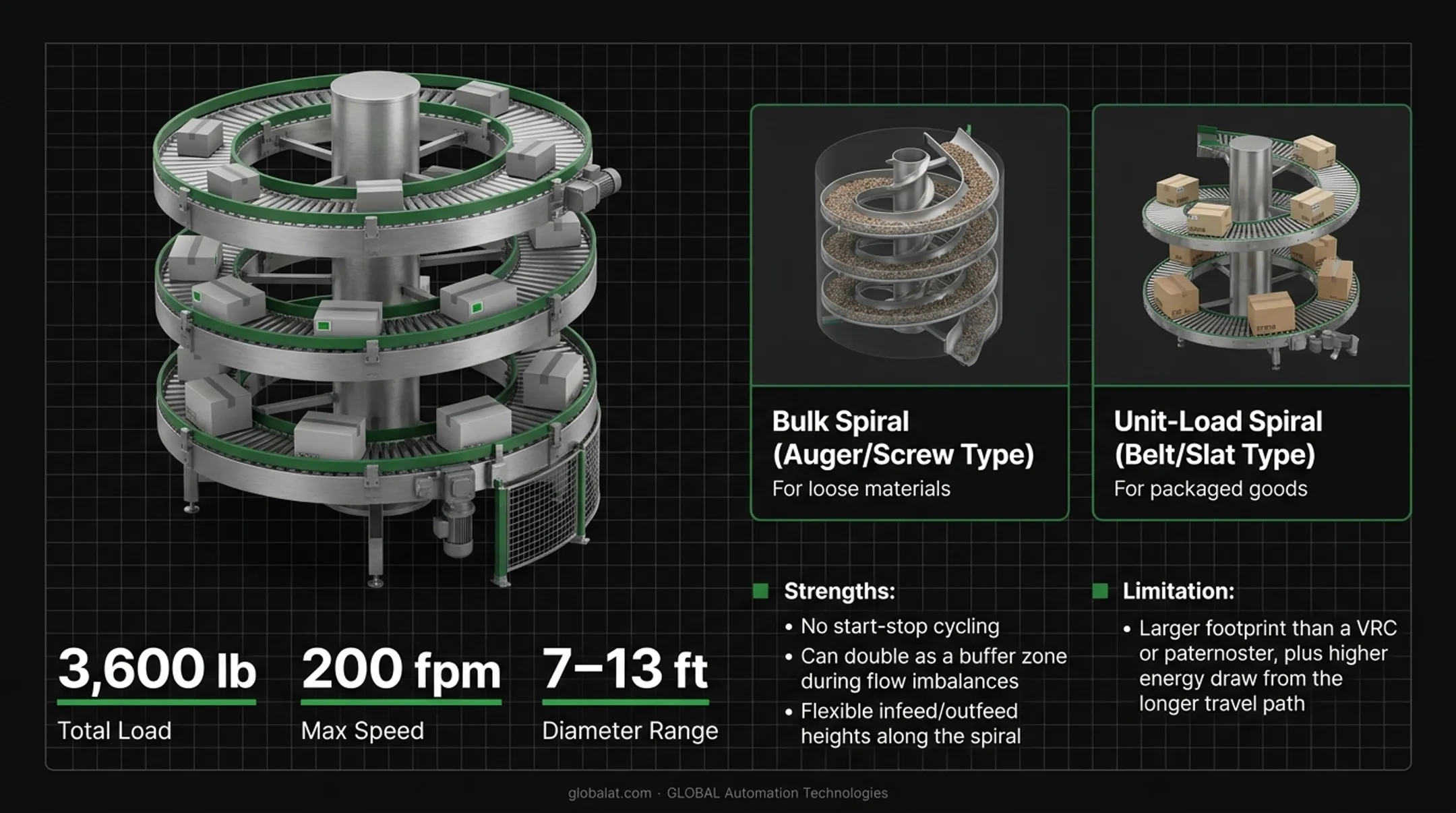

Spiral conveyors wrap a belt or slat conveyor around a central column, lifting product continuously along an incline rather than straight up.
There are two flavors:
- Bulk spiral (auger/screw type): for loose materials
- Unit-load spiral (belt/slat type): for packaged goods
The path is the differentiator: a spiral incline instead of a vertical shaft.
Best suited for:
- High-volume continuous flow lines
- Buffering or accumulation between processes
- Food, beverage, or e-commerce packaging operations
Strengths:
- No start-stop cycling
- Can double as a buffer zone during flow imbalances
- Flexible infeed/outfeed heights along the spiral
Limitation: Larger footprint than a VRC or paternoster, plus higher energy draw from the longer travel path. One high-capacity model handles up to 3,600 lb total load at speeds up to 200 fpm, with diameters ranging 7 to 13 feet.
Bucket Elevators and Vertical Screw Conveyors
These are built exclusively for bulk solids, not discrete unit loads. Buckets or augers lift loose material like grain, powder, or aggregate vertically.
Best suited for:
- Agriculture
- Mining
- Cement and chemical processing
Strengths:
- Reliable, low-maintenance handling of granular material at steep angles
- Capacities scale from 400 ft³/hour (6-inch diameter) to 6,000 ft³/hour (16-inch diameter)
Limitation: Not suitable for pallets, totes, or packaged goods. If your load has a shape and a footprint, this isn't your conveyor.
How to Choose the Right Vertical Conveyor Type
The right choice hinges on load characteristics, layout, and throughput needs — not just sticker price.

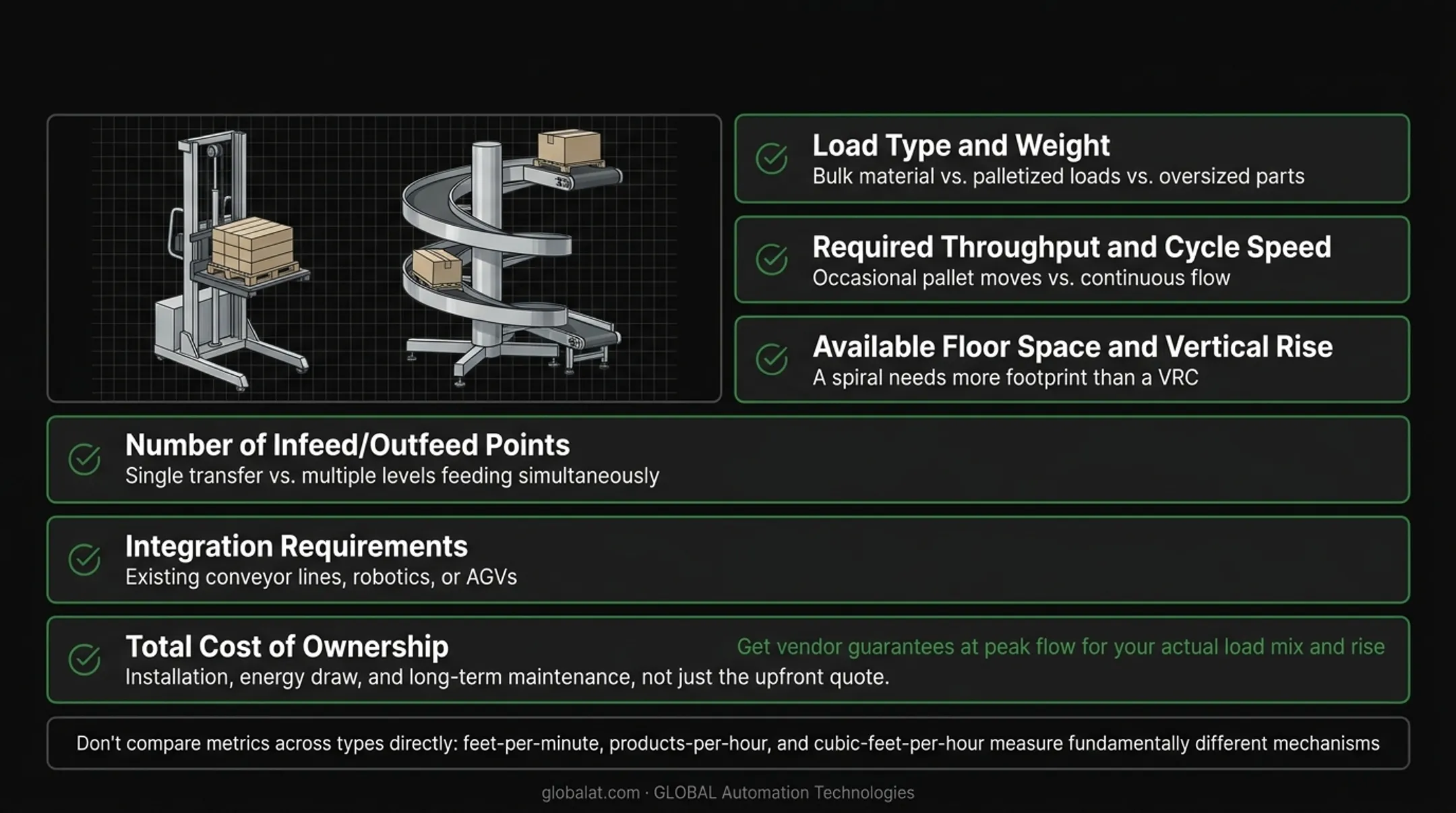

Key factors to weigh:
- Load type and weight — bulk material vs. palletized loads vs. oversized parts
- Required throughput and cycle speed — occasional pallet moves vs. continuous flow
- Available floor space and vertical rise — a spiral needs more footprint than a VRC
- Number of infeed/outfeed points — single transfer vs. multiple levels feeding simultaneously
- Integration requirements — existing conveyor lines, robotics, or AGVs
- Total cost of ownership — installation, energy draw, and long-term maintenance, not just the upfront quote
Don't compare metrics across types directly. Feet-per-minute, products-per-hour, and cubic-feet-per-hour measure fundamentally different mechanisms. Get vendor guarantees at peak flow for your actual load mix and rise.
Industrial Applications of Vertical Conveyor Systems
Automotive and Tier 1 plants rely on vertical conveying to move components between assembly levels. That fits high-volume production where floor space is already stretched thin by robotic cells and tooling.
Warehouses and distribution centers use vertical conveyors to connect mezzanines, support order picking, and handle dock-to-floor transfer. One multi-story logistics center running continuous carriers processed up to 2,500 units per hour for parcel-format loads.
Food, pharmaceutical, and heavy industry applications often need sanitary washdown-rated designs or heavy-duty construction for harsher environments.
Getting a vertical conveyor to work well inside a plant means tying it into everything else on the floor: robotic cells, PLCs, and safety systems. GLOBAL Automation Technologies builds that connective layer regularly, engineering the controls logic that lets FANUC robots and conveyor equipment share signals:
- Speed matching
- Part tracking
- Flow-rate management
- E-stop coordination
For manufacturers planning to link vertical conveying with robotic machine tending or material handling cells, that controls integration determines whether automated flow succeeds or stalls.
What to Check Before Finalizing a Vertical Conveyor Type
Before you lock in a vertical conveyor type, pressure-test the choice against real volume, line speed, and future automation plans. These missteps show up often after the PO is already signed:
- Don't over-spec. A high-capacity continuous conveyor isn't worth it if a simple reciprocating lift covers your actual volume.
- Watch cycle speed. A VRC's start-stop nature can bottleneck an otherwise automated line if throughput expectations are set too high.
- Account for lifetime costs. Energy and maintenance add up over years. Don't buy on upfront price alone.
- Plan for what's next. If robotic tending or AGV integration is on your roadmap, choose a conveyor that can support it without a redesign.
Conclusion
Vertical conveyors are core infrastructure for modern material handling. They maximize vertical space and reduce reliance on manual labor and forklift traffic.
VRCs, paternosters, spirals, and bucket elevators each solve a different problem based on load type and throughput. Matching the right type to your application before installation keeps operations safe and efficient, and avoids a costly retrofit later.
Frequently Asked Questions
What is a vertical conveyor system?
It's automated equipment engineered to move materials, not people, between floor levels in a facility. Most units integrate into a broader material handling system rather than operating as a standalone machine.
What are the different types of vertical conveyors?
The main types are vertical reciprocating conveyors (VRCs), continuous/paternoster conveyors, spiral conveyors, and bucket elevators or vertical screw conveyors for bulk solids.
How is a VRC different from a freight elevator?
A VRC carries materials only (no riders are permitted) and falls under ASME B20.1 rather than the elevator code ASME A17.1. Inspection requirements and permitting also differ by state.
Which vertical conveyor is best for high-volume operations?
Continuous/paternoster and spiral conveyors handle sustained high throughput better than reciprocating lifts, since they don't rely on a start-stop cycle.
How much space does a vertical conveyor need?
VRCs and paternosters generally have compact footprints suited to tight layouts. Spiral and inclined conveyors need more floor area because of their longer travel path.
Can vertical conveyors integrate with robotic automation?
Yes. Vertical conveyors can feed directly into robotic machine tending or palletizing cells. Controls handle speed matching, part tracking, and signal coordination so material keeps moving without manual handoffs.
