That confusion creates real problems when it's time to spend money. Is fixed tooling enough, or do you need a reprogrammable robotic cell? Is AI-driven automation worth the premium, or is it hype? The question every buyer eventually asks is simple: will this pay for itself?
This guide breaks down what automation actually means, the four core types, why it matters right now, and how to think about cost and ROI. We'll use robotic welding as a running example throughout, since it's one of the clearest cases for automation adoption today.
Key Takeaways
- Automation spans four types: fixed, programmable, flexible/robotic, and AI-integrated
- Robotic automation is growing fastest because it's reprogrammable across multiple products
- Labor shortages, safety risks, and quality demands drive most adoption decisions
- Machine tending and welding cells often pay for themselves within 12-18 months
- Choosing the right integration partner matters as much as choosing the right hardware
What Is Automation? A Working Definition
Automation is the use of control systems, machinery, or software to carry out tasks with minimal human involvement. That's distinct from plain mechanization, which is just a machine that still needs a person to trigger every single action.
A manually operated welding jig where an operator clamps the part and pulls a trigger for each weld is mechanized. A system that positions the part, runs the weld sequence, and moves to the next cycle on its own is automated.
Industrial automation isn't new. The first successful industrial robot application happened in 1961, when a Unimate arm went to work at General Motors' Ternstedt plant in Trenton, New Jersey, unloading castings from a die-casting press, according to IEEE Spectrum's history of the Unimate robot.
That single deployment kicked off a boom. By the 1980s, automotive manufacturers worldwide were spending billions of dollars automating basic assembly-plant tasks, and the industry posted years of roughly 30% year-over-year growth.
Automation runs on a closed loop of four components:
- Sensors that detect position, pressure, temperature, or presence
- Controllers that process sensor data and make decisions
- Actuators that physically execute the action (motors, cylinders, robot joints)
- Software that ties it together and defines the logic

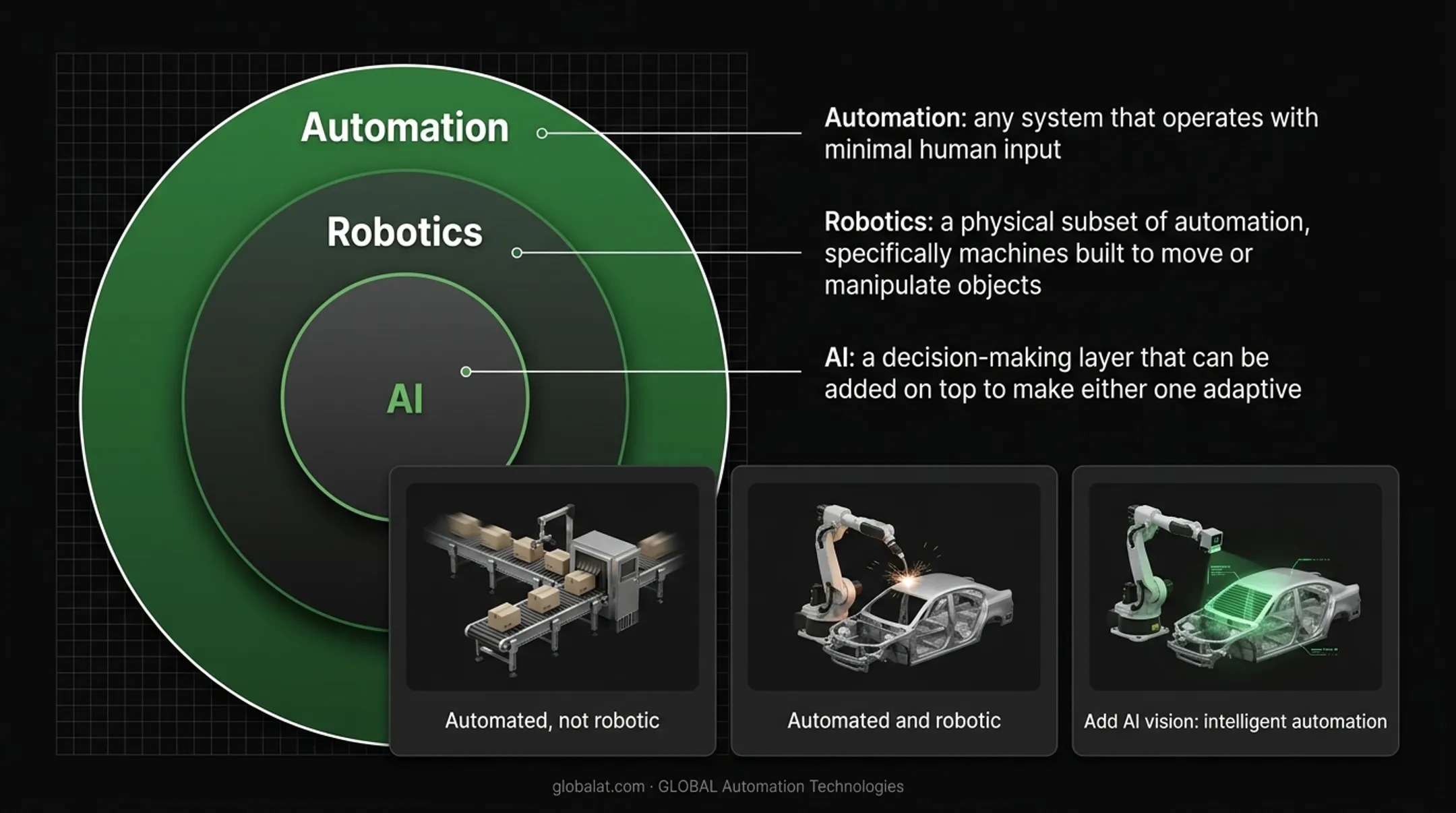

Automation vs. Robotics vs. AI
These three terms get used interchangeably, but they aren't the same thing.
Automation is the umbrella term for any system that operates with minimal human input. Robotics is a physical subset of automation, specifically machines built to move or manipulate objects. AI is a decision-making layer that can be added on top to make either one adaptive.
Here's a quick way to picture it: a fixed conveyor belt is automated but not robotic. A six-axis robotic arm welding a car frame is both automated and robotic. Add AI-powered vision that lets that arm adjust its path in real time, and now you've got intelligent automation.
Types of Automation: The Four Core Categories
Automation types generally fall along a spectrum from rigid and single-purpose to fully adaptive and AI-guided. Where you land depends on production volume, product variety, and how often things change on your line.
Fixed (Hard) Automation
Fixed automation is dedicated equipment built for one repetitive task, like a welding jig designed exclusively for straight or round welds on a single part.
- High capital cost, offset by very low cost per unit at scale
- Extremely high throughput on that one task
- Almost zero flexibility once installed; retooling for a new part often means starting over
Programmable Automation
This category, best represented by CNC machines, can be reprogrammed between production batches. It suits medium-volume runs where the product changes periodically but not constantly.
- Moderate investment relative to dedicated fixed lines
- Changeovers handled through new programs, not new hardware
- Best when batch sizes justify setup time between runs
Flexible (Robotic) Automation
Flexible automation is built around articulated robots that can be reprogrammed and redeployed with minimal downtime, switching between tasks or products as needed. It is the fastest-growing category in industrial automation, largely because one robot can serve multiple product lines instead of locking into a single job.
Common industrial applications include:
- Welding (MIG, TIG, spot, and laser)
- Machine tending for CNC or press operations
- Material handling and part transfer
- Painting, coating, and adhesive dispensing
- Automated inspection and quality verification
AI-Integrated Automation
Manufacturers are layering AI on top of robotic systems. Two applications are gaining traction fast:
- Predictive maintenance uses AI-driven health checks to flag equipment issues before unplanned downtime
- Simulation-based programming lets engineers model, test, and optimize a robot program virtually before it touches the shop floor, cutting commissioning time from weeks to days

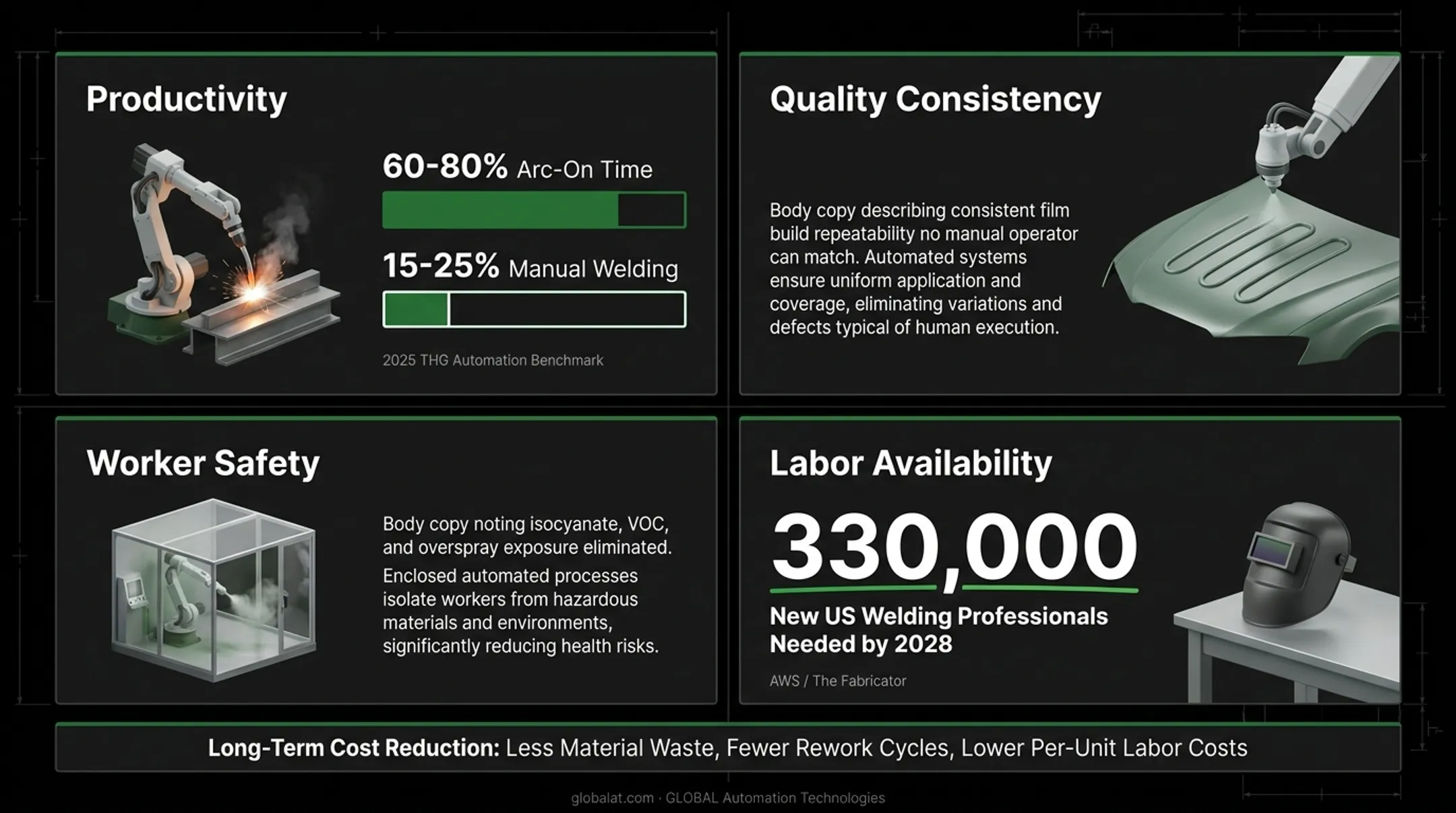

Why Automation Matters: Key Benefits for Manufacturers
Automation solves several problems at once, and manufacturers rarely adopt it for just one reason.
Productivity is the most obvious gain. Robotic welding systems can sustain 60-80% "arc-on" time, compared to just 15-25% for manual welding, according to a 2025 industry benchmark from THG Automation. Manual welders lose time to breaks, repositioning, and setup; robots don't.
Quality consistency follows close behind. Robotic painting systems follow the same programmed path every cycle, holding film build within specification with a repeatability no manual spray operator can match shift after shift.
Worker safety removes people from hazardous exposure. Robotic painting and coating keeps operators clear of isocyanates, VOCs, and overspray particulates. Electrostatic powder coating automation eliminates the high-voltage exposure risks tied to manual application.
Labor availability adds urgency. AWS workforce data projects the US will need approximately 330,000 new welding professionals by 2028, per reporting from The Fabricator. That gap is pushing plants toward robotic welding cells that don't depend on scarce skilled labor.
Long-term cost reduction seals the business case: less material waste, fewer rework cycles, and lower per-unit labor costs that offset the upfront investment over time.
Automation Costs and ROI: Is It Worth the Investment?
Costs vary widely depending on which type of automation you're buying. Fixed automation is cheapest to install but locks you into one task. Robotic and flexible systems cost more upfront but spread that investment across multiple products and processes.
For robotic welding specifically, pricing generally falls into two tiers:
| System Type | Typical Price Range | Best Fit |
|---|---|---|
| Pre-engineered industrial welding cell | $130,000-$250,000 | Standard part geometries, faster deployment |
| Custom industrial robotic welding system | $250,000-$600,000+ | Complex parts, multi-robot cells, tight tolerances |
(Ranges based on 2025 market data from CLOOS North America; actual pricing depends on payload, reach, tooling, and safety enclosures.)
Payback depends on production volume, labor savings, and scrap reduction. Many robotic machine tending and welding cells pay for themselves within 12 to 18 months. The math is straightforward: more parts per shift, fewer direct labor hours, and less scrap.
Is Robotic Welding Actually Worth It?
Tradeoffs break down along clear lines:
In favor:
- Consistent weld quality and higher throughput
- Reduced injury risk on the floor
- Less dependence on scarce skilled welders
Against:
- Upfront integration cost
- Operator and programmer training
- Retooling time when part families change
For high-volume or safety-sensitive applications, the math usually favors automation. For low-volume, highly variable work, a feasibility study is worth doing before committing capital.
Choosing the Right Automation Partner
Picking the right integrator matters as much as picking the right robot. A system that's engineered well but poorly supported after installation will underperform no matter how good the hardware is.
When evaluating any automation partner, look for:
- Full turnkey capability: layout, design, build, programming, validation, installation, training, and ongoing support under one roof
- Proven experience in your application, whether welding, machine tending, painting, or material handling
- Post-launch support: systems that go live without embedded engineering help often become liabilities within the first year
GLOBAL Automation Technologies is one example of full-lifecycle capability in practice. Founded in 2008, GLOBAL is a Level 5 FANUC Authorized System Integrator (the highest tier in FANUC's program) with a proven global base of robotic deployments.
GLOBAL builds and integrates the robotic system through its automation systems and engineering services work, and its technical staffing places controls, mechanical, and project management engineers on a contract, contract-to-hire, or direct-hire basis to run it. One relationship covers the system and the people who operate it.
Frequently Asked Questions
What are the main types of automation?
The four core types are fixed (hard), programmable, flexible/robotic, and AI-integrated automation. They range from rigid, single-task equipment to fully adaptive systems guided by AI-driven decision-making.
Are there automated welding machines?
Yes. Options range from fixed welding jigs built for one repetitive weld to reprogrammable robotic arms that handle MIG, TIG, spot, and laser welding across multiple part types.
How much does an automated welding machine cost?
Pre-engineered industrial welding cells typically run $130,000–$250,000, while custom multi-robot systems can exceed $600,000. Pricing depends heavily on payload, reach, tooling, and safety requirements.
Is robotic welding worth it?
For high-volume or safety-sensitive production, usually yes. Consistent quality and higher throughput typically outweigh integration costs within 12–18 months, with lower injury risk as an added gain. Low-volume, highly variable work needs a closer feasibility review.
What's the difference between automation and robotics?
Automation is the broader concept: any system that operates with minimal human input. Robotics is a physical subset of automation, specifically machines designed to move or manipulate objects.
How do I know if my business is ready for automation?
Signs include repetitive high-volume tasks, chronic labor shortages, recurring quality or scrap issues, or planned production growth. A formal feasibility study with an experienced integrator is the most reliable way to confirm readiness and estimate ROI.
