Custom automation equipment design and build is the end-to-end engineering process of creating purpose-built robotic systems and automated manufacturing cells tailored to specific production requirements. This explanation is for manufacturing decision-makers in automotive OEMs, Tier 1 suppliers, heavy equipment manufacturers, and industrial companies evaluating automation investments. Understanding this process is critical because typical projects range from six to eighteen months, and misaligned expectations are among the most common causes of project failure.

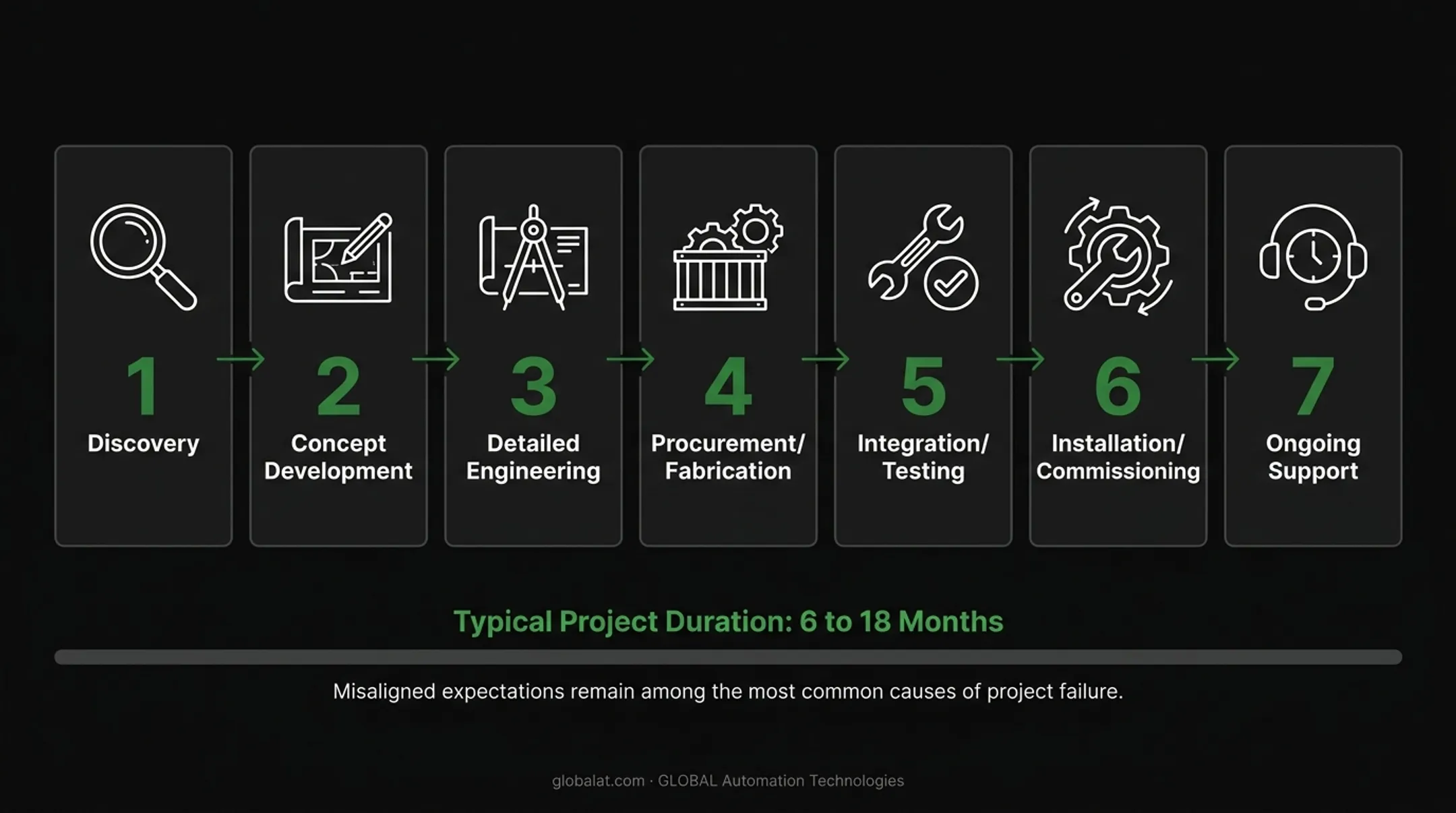

This article walks through seven phases: Discovery → Concept Development → Detailed Engineering → Procurement/Fabrication → Integration/Testing → Installation/Commissioning → Ongoing Support. It provides the operational reality of how these systems are actually designed and built, not just the sales pitch.
Key Takeaways
- Expect a structured seven-phase build spanning six to eighteen months from requirements through production
- Clear requirements, cross-discipline coordination, and a full turnkey partner drive project success
- Key gates include concept and cycle-time analysis, 3D CAD/PLC engineering, FAT, then on-site commissioning and ramp-up
- Vague requirements and weak coordination cause the costliest mistakes; experienced integrators catch them early
- Compressed timelines are the enemy of quality; realistic milestone planning protects both schedule and budget
Phase 1: Discovery and Requirements Definition
Every project begins with requirements gathering. Teams capture product details, the current process, the pain points driving automation, and how the cell must connect to upstream and downstream equipment.
Discovery typically documents:
- Product geometry, materials, weight, and tolerances
- Existing process steps, if a line already runs today
- Drivers such as labor cost, quality defects, capacity limits, and safety
- Integration requirements with adjacent equipment
Success criteria must be documented:
- Throughput targets: Parts per hour or per shift
- Quality requirements: Defect rates, measurement tolerances, traceability needs
- Flexibility requirements: Number of product variants, changeover time between SKUs
- Budget and ROI: Capital limits, payback period, and expected return
- Timeline constraints: When production must begin
Feasibility assessment comes before full development. Integrators weigh three questions:
- Technical feasibility: Can the process be automated reliably?
- Economic feasibility: Does ROI justify the investment?
- Risk: What could break the concept, and how do you prove it early?
Concept studies, proof-of-concept runs with actual parts, and simulation modeling reduce that risk on complex applications.
A3's ROI calculator factors purchase price, labor, maintenance, electricity, and utilization over a 20-year system life. Every plant still needs its own cash-flow case. No universal volume threshold exists; NIST research confirms automation is accessible even to small manufacturers when capacity, quality, and safety needs justify the investment.
Phase 2: Concept Development
Process Development
Process development defines how the manufacturing operation will run:
- Which technologies handle each task (robotic assembly, fixed automation, or hybrid)
- Sequence of operations
- Cycle time estimates for each step
- Validation on customer parts to prove the process assumptions
Mechanical Concept Development
The mechanical concept locks in the physical layout:
- Overall machine footprint and arrangement
- Major component placement (robots, presses, conveyors, inspection stations)
- Operator access points and ergonomics
- Material flow through the system
- Safety guarding approach
Teams usually explore several concepts before locking one in. Offline simulation makes that choice safer and faster.
FANUC ROBOGUIDE can test cycle time, reach, payload, motion paths, interference, tooling, fixtures, guarding, and layout before anything is installed. ABB RobotStudio adds cable simulation, swept-volume checks, collision-free paths, and early placement of fences and safety zones.
Controls Architecture Definition
In parallel, the controls architecture sets how the cell will think and communicate:
- PLC platform selection
- Robot controller requirements
- Vision system specifications
- HMI approach and operator interface design
- Network architecture and connectivity (EtherNet/IP, PROFINET)
- Safety system requirements (light curtains, interlocks, E-stops)
Technology Selection Decisions
Robot choice should follow application data—payload, reach, cycle time, and path behavior—not unit price alone. The same pass covers supporting hardware:
- Servo systems and drives
- Sensors and measurement devices (vision, force, proximity)
- Tooling and fixture concepts (grippers, nests, end-of-arm tooling)
- Material handling mechanisms (conveyors, lifts, indexing tables)

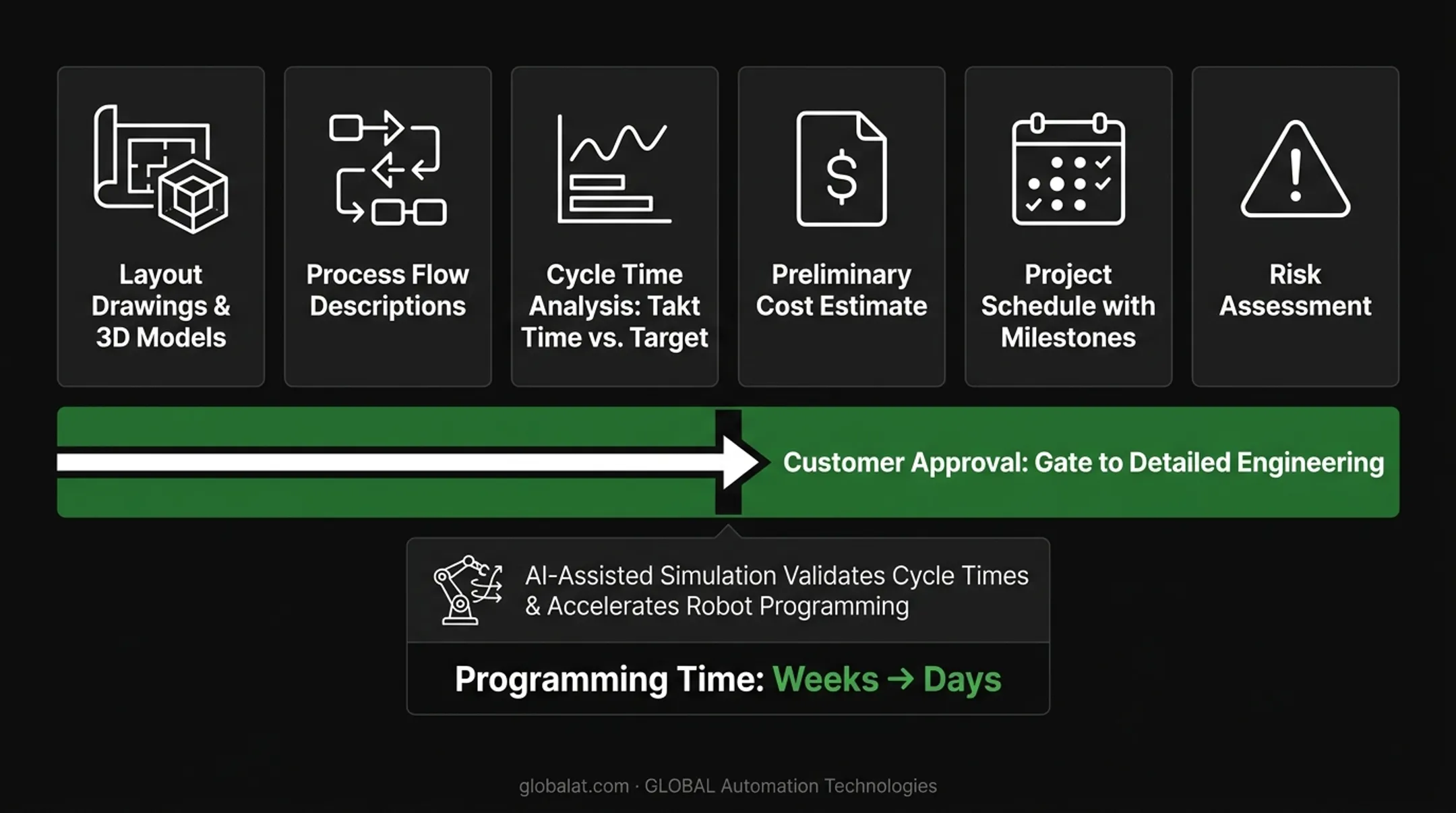

Concept Review with Customer
Before detailed engineering starts, the concept package goes back to the customer for review:
- Layout drawings and 3D models
- Process flow descriptions
- Cycle time analysis showing takt time vs. target
- Preliminary cost estimate
- Project schedule with milestones
- Risk assessment
Customer approval is the gate into detailed engineering.
Modern integrators also use AI-assisted simulation here to validate cycle times and accelerate robot programming before hardware is built. GLOBAL’s approach can cut that programming work from weeks to days, so startups move faster with fewer launch surprises.
Phase 3: Detailed Engineering
Detailed engineering turns the approved concept into build-ready documentation. Mechanical, electrical, and controls teams work in parallel so fabrication and programming can start with fewer late changes.
Mechanical Design Deliverables
Mechanical design deliverables include:
- Custom fixtures: Hold and position parts with micron-level precision
- End-of-arm tooling for robots: Grippers with force sensing, welding torches, vision camera mounts, dispensing nozzles
- Structural elements: Machine bases, frames, guarding, access doors
- Material handling systems: Powered conveyors, part indexing, accumulation zones
- Utility systems: Pneumatic distribution, lubrication, chip evacuation
3D CAD software models every component with interference checking to ensure parts fit correctly.
Electrical Design Outputs
Electrical design produces:
- Electrical schematics: Power and control wiring per NFPA 79:2024
- Panel layouts: Control enclosure component mounting
- Pneumatic schematics: Air-powered actuators and cylinders
- Cable routing and harnesses: Strain relief and service access built in
- Component specs and BOM: Full bill of materials for procurement
NFPA 79:2024 covers electrical equipment for industrial machinery operating at 1,000 V or less and requires machine risk assessment.
Controls Engineering Development
Controls engineers develop:
- PLC programs: Sequence and control the machine logic
- HMI screens: Operator interface with alarm management and diagnostics
- Robot programs: Motion paths and process execution (welding parameters, dispensing flow rates)
- Vision system configurations: Inspection and robot guidance
- Safety PLC programs: Safety-rated functions per ISO 13849-1:2023
The current U.S. robot safety standard is ANSI/A3 R15.06-2025. It adopts ISO 10218-1:2025 and ISO 10218-2:2025, covering robot design, integration, commissioning, operation, maintenance, and disposal.
Design Review Checkpoints
Checkpoints in this phase include:
- Internal design reviews: Catch errors before release to fabrication
- Customer reviews: Confirm the design meets requirements and lock changes before hardware is built
- Safety reviews: Verify compliance with applicable standards
- Procurement reviews: Confirm component availability and lead times
This is where GLOBAL's dual-division model pays off. Systems integration engineers design the equipment, and the technical staffing division can supply on-site talent to commission and maintain it. Clients keep a single point of accountability from concept through long-term operation.
Phase 4: Procurement and Fabrication
Component Procurement
Component procurement covers:
- Major equipment: Robots, servo drives, PLCs, vision systems
- Commercial components: Sensors, pneumatics, motors, switches
- Fabricated parts: Machined components, sheet metal, weldments
- Electrical materials: Wire, cable, connectors, terminals
Lead times vary by supplier and market conditions. Ordering long-lead items early—robots, custom tooling, specialty sensors—keeps the build schedule on track.
In-House Fabrication Capabilities
Once parts are on order, many integrators use in-house shops for custom work:
- CNC machining for precision components and fixtures
- Welding for structural assemblies and frames
- Sheet metal fabrication for guarding and enclosures
- Wire harness assembly per electrical schematics
Keeping fabrication internal shortens feedback loops when designs change mid-project.
Assembly Process
Skilled technicians then assemble the full system:
- Installing components on machine bases and weld tables
- Mounting and aligning fixtures for part accuracy
- Installing robots and servo systems with proper cable management
- Running utilities (electrical conduit, pneumatic tubing, hydraulic lines)
- Building electrical panels from schematics
- Mounting, wiring, labeling, and testing panels before installation
Phase 5: Integration and Testing
With the cell built, Phase 5 brings mechanics, controls, and process together on the shop floor. Teams wire the system, load software, debug motion and safety logic, prove the process on real parts, then run formal Factory Acceptance Testing before shipment.
Electrical Installation
Field wiring ties the cell together:
- Panels to machine devices
- Sensors and actuators to control systems
- Safety devices to safety controllers per functional safety requirements
- Communication networks (EtherNet/IP, PROFIBUS, I/O Link)
PROFINET RT covers most industrial timing needs. Optional IRT is reserved for high-performance synchronized motion.
Controls Integration Process
Once power and networks are live, controls go on the hardware:
- Download PLC programs to controllers
- Configure servo drives and tune motion for smooth accel/decel
- Set robot teach points and optimize motion paths
- Establish HMI communications and build operator screens
- Integrate vision with robot controllers for part detection and guidance
System Debugging Work
Integration always surfaces timing gaps, interlock faults, and motion quirks. Debugging closes those gaps:
- Verify every sensor input and output responds correctly
- Test each motion sequence and interlock
- Tune servos for speed and accuracy without overshoot
- Debug PLC logic to clear timing issues
- Validate safety functions (E-stops, light curtains, interlocks)
Process Development Using Actual Production Parts
With the cell stable, work shifts to real production parts—not simulations:
- Validate process parameters (weld settings, adhesive bead profiles, torque values)
- Optimize cycle times to meet or beat targets
- Verify quality against specs through measurement
- Fine-tune robot paths to avoid collisions and pick up speed
- Document the final process recipe for commissioning

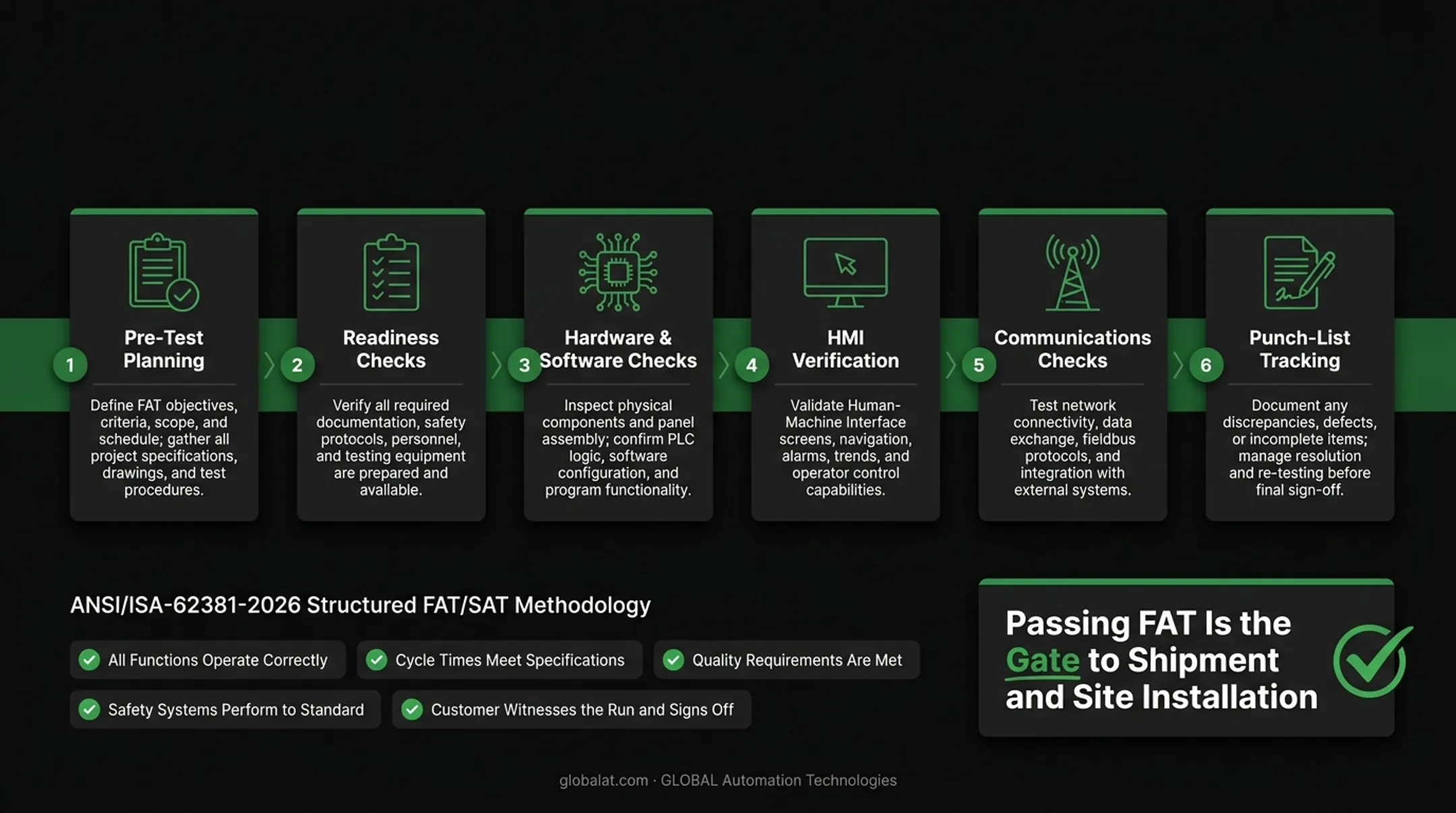

Factory Acceptance Testing (FAT)
Factory Acceptance Testing is the formal check before the machine leaves the builder. ANSI/ISA-62381-2026 outlines structured FAT/SAT methods—pre-test planning, readiness checks, hardware/software/HMI and communications checks, punch-list tracking, and completion criteria.
The standard is written for the process industry, but the same discipline applies well to discrete robotic cells.
FAT confirms:
- All functions operate correctly
- Cycle times meet specifications
- Quality requirements are met
- Safety systems perform to standard
- The customer witnesses the run and signs off that requirements are met
Passing FAT is the gate to shipment and site installation—the contractual acceptance milestone for the equipment.
Phase 6: Installation and Commissioning
Once factory acceptance is complete, the system moves to the customer facility for installation, startup, and final validation on the production floor.
Site Preparation Requirements
Before equipment arrives, the customer completes site preparation:
- Foundation or floor preparation (levelness, load capacity, anchor points)
- Utility connections (electrical service, compressed air, network infrastructure)
- Safety fencing installation if not included with equipment
- Material handling connections to upstream/downstream equipment
OSHA 1910.212 requires guarding against point-of-operation, nip-point, rotating-part, chip, and spark hazards. Fixed machines must be securely anchored.
Rigging and Placement
Professional riggers then handle physical installation:
- Transporting equipment safely to the facility
- Positioning machines precisely per layout drawings
- Leveling and anchoring to floor with grouting if required
- Connecting sections of larger multi-station systems
OSHA 1910.184 sets strict sling and lift rules: never exceed sling ratings, keep identification legible, inspect daily through a competent person, remove damaged slings, attach loads securely, and keep employees clear of suspended loads.

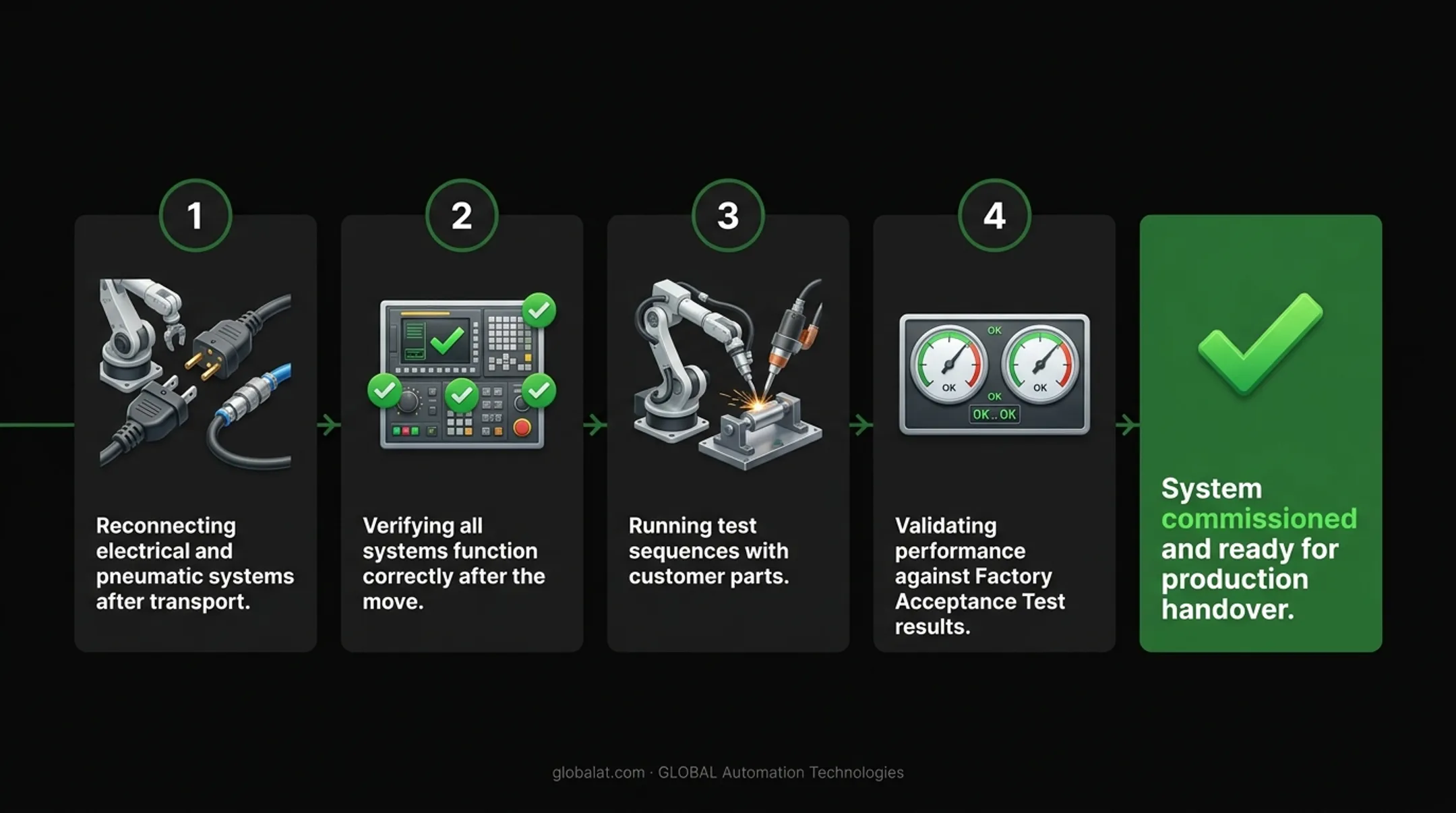

Field Startup Process
After placement, field startup brings the cell online:
- Reconnecting electrical and pneumatic systems after transport
- Verifying all systems function correctly after the move
- Running test sequences with customer parts
- Validating performance against Factory Acceptance Test results
When those checks pass, the system is commissioned and ready for production handover.
Phase 7: Ongoing Support and Optimization
Commissioning is not the finish line. Once the cell is in production, warranty coverage, maintenance, and continuous improvement keep uptime and quality from drifting.
Warranty Support
Typical warranty coverage includes:
- Technical support for operational issues via phone or remote access
- Repairs or component replacements for defects under warranty
- Remote diagnostics to cut unnecessary site visits and downtime
- Documented response times defined in the service level agreement
Predictive tools strengthen that safety net. FANUC ZDT (Zero Down Time) monitors robot condition and mechanical health during production. It flags trends before a failure, then surfaces health and maintenance status in a web portal so teams can act early.
Ongoing Service Options
Beyond warranty, most integrators offer lifecycle services:
- Preventive maintenance programs that protect uptime
- Spare parts supply with inventory management
- Software updates and process tweaks as products change
- Performance work to raise throughput or tighten quality
- Training refreshers for new operators and maintenance staff
Those refreshers are not optional window dressing. OSHA 1910.147 requires role-specific hazardous-energy (lockout/tagout) training. Retraining is required after job changes, machine or process changes that create new hazards, procedure updates, or observed gaps in knowledge or practice.
When you need engineering coverage without adding full-time headcount, GLOBAL’s technical staffing division supplies automation talent on contract, contract-to-hire, or direct placement—so the same partner that built the system can help keep it running.
Frequently Asked Questions
How long does a custom automation project typically take from concept to production?
Timelines depend on complexity, scope, and integration needs. Single-station cells finish faster than multi-robot lines. Compressing a realistic schedule usually causes errors and rework that delay launch.
What is the difference between custom automation and standard automation equipment?
Standard automation uses off-the-shelf equipment configured for broad applications. Custom automation is engineered for a specific process, product geometry, and plant environment, usually with higher throughput, tighter quality control, and a better fit to existing infrastructure.
What does Factory Acceptance Testing (FAT) include and why is it important?
FAT is formal verification at the integrator’s facility. You watch the machine run production parts to confirm functions, cycle time, quality, and safety compliance. It is the contractual acceptance milestone before shipment.
How do I evaluate whether my process is a good candidate for automation?
Weigh labor cost, shifts, capacity, quality, and safety—not a single volume number. Strong candidates have stable product geometry, clear quality specs, and manual steps that create safety risk, inconsistency, or capacity limits process improvement alone cannot fix.
What should I look for when selecting an automation integration partner?
Look for mechanical, electrical, controls, and software capability under one roof, plus fabrication capacity and documented FAT/SAT rigor. Require performance accountability and post-commissioning support. A3 Certified Robot Integrator certification adds on-site audit, personnel assessment, safety training, and two-year renewal.
What are the most common reasons automation projects fail or exceed budget?
Most failures trace to scope creep, weak cross-discipline coordination that forces rework, and timelines that cut design or testing short. Strong integrators counter this with clear requirements, cross-functional design reviews, and realistic milestones.
